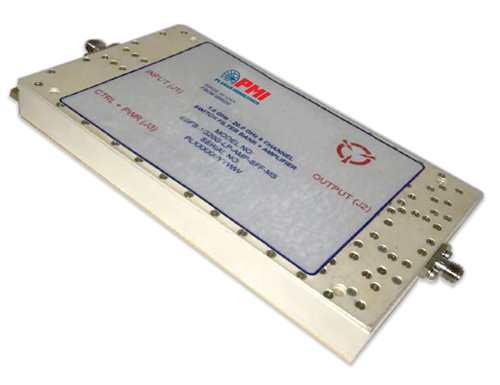

6SFB-1G20G-LP-AMP-SFF-MS

6-Channel Switch Filter Bank

PMI Model No. 6SFB-1G20G-LP-AMP-SFF-MS is a 6-Channel Switch Filter Bank followed by an amplifier that operates over the 1.0 to 20.0 GHz frequency range. This model offers fast switching speed of 200 ns while maintaining a gain of 20 dB and 10 dBm P1dB.

Product Specifications

General Parameters:
Status: Active
No of Filter Channels: 6
Full Operating Frequency: 1.0 to 20.0 GHz
Switching Speed: 200 ns Typ (From 50% TTL to 90%/10% RF)
Control Type: TTL 3-Bit
DC Voltage: +15 VDC ± 5%
-15 VDC ± 5%
DC Current (mA): 700 mA Max
100 mA Max
Size: 5.50" x 3.00" x 0.67"
VSWR: 2.0:1 Max
Connectors: RF: (J1, J2) SMA (F) Removable IAW MIL-STD-202
J3 - Control & Power: D-Sub, DB9 Connector
Finish: Painted Blue, Mounting Surface Free of Paint
Power Supply: +15 VDC ± 5% @ 700 mA Max
-15 VDC ± 5% @ 100 mA Max
Gain: 20 dB Min, 25 dB Typ
Output 2nd Harmonic: 45 dBc @ 0 dBm Output Power (Filter passband must be selected for maximum harmonic attenuation. Thru path 2nd harmonic value 15 dBc Typ)
Power Handling: +15 dBm Max (Do Not Hot Switch)
Output P1dB: +10 dBm Min
Logic Input: TTL Compatible, 3 Bits Decoded
TTL High = 2 V Min
TTL Low = 0.8 V Max
Environmental Ratings:
Operating Temperature: +10 °C to +55 °C Base Plate
Non-Operating Temperature: -10 °C to +85 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
