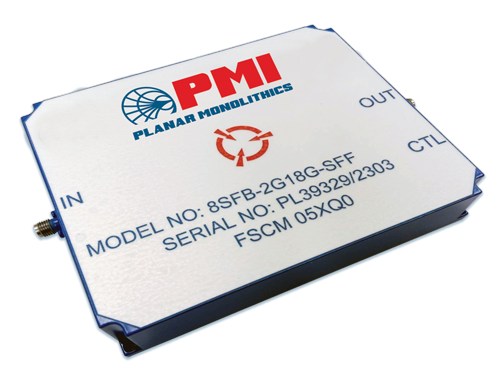

PMI designs, manufactures, and produces high quality state-of-art-art switch filter banks that feature 2 to 32 multichannel configurations, frequency coverage up to 26 GHz, low profile packaging, connector options, and high channel to channel isolation. Select from standard designs or custom Switch Filter Banks can be designed to meet your most demanding electrical, mechanical, and environmental specifications.

Features:

  • Up to 40 GHz Operation
  • Low Noise Figure
  • Unconditionally Stable over Temperature
  • Field Replaceable Connectors
  • Internally Voltage Regulated / Reverse Voltage Protected
  • Small Size & Standardized Packaging
  • Each unit has a unique serial number and date code.
  • Swept Data with each unit, supplied with every delivery

Options:

  • Modified internal voltage regulators for +28 VDC operation
  • Form, Fit, and Function
  • Other Connector types available
  • Gain and OP1dB values can be optimized to meet your requirement
  • Operating temperature ranges can be increased to -54 to +85 °C
  • All amplifiers can be optimized to your specific frequency of interest
  • Temperature Compensation and Gain Equalization is available on all amplifiers
  • Hermetic Sealing is available.  Standard catalog amplifiers are sealed with a conductive epoxy
  • Military Screening available

The following listing contains various switch filter banks that PMI has manufactured and produced for many different customers. This is just a small list which demonstrates our filter design capabilities.

If you do not see exactly what you need, please e-mail your requirement to sales@pmi-rf.com so we can propose an instant solution.

All specifications are typical and subject to change with or without notice.

Part NumberStatusNo of Filter ChannelsFrequency MinFrequency MaxInsertion LossSwitching SpeedControl TypeDC VoltageDC Current (mA)
6SFB-2G20G-LP-SFF-MS-ESPreliminary62.0 GHz20.0 GHz8 dB Max200 ns TypTTL+15 VDC ±5% @ 300 mA Max
-15 VDC ±5% @ 100 mA Max
+15 VDC ±5% @ 300 mA Max
-15 VDC ±5% @ 100 mA Max
12SFB-30M6G-CD-SFFPreliminary120.03 GHz6.0 GHz8 dB MAX500 ns MAXTTL 4 bits+5VDC 750mA Typ
-15VDC 100mA Typ
+5VDC 750mA Typ
-15VDC 100mA Typ
6SFB-5925197-SMAPreliminary65.925 GHz19.7 GHz5.5 dB200 ns MaxTTL+5 VDC @ 600 mA Max
-5VDC @ 100 mA Max
+5 VDC @ 600 mA Max
-5VDC @ 100 mA Max
6SFB-55185-SMAActive65.5 GHz18.5 GHz4.0 dB200 ns MaxTTL+5 VDC @ 550 mA Max
-5 VDC @ 100 mA Max
+5 VDC @ 550 mA Max
-5 VDC @ 100 mA Max
6SFB-1G20G-LP-SFF-MSActive61.0 GHz20.0 GHz8 dB Max200 ns TypTTL Compatible, 3 Bits Decoded+15 VDC ±5% @ 300 mA Max
-15 VDC ±5% @ 100 mA Max
+15 VDC ±5% @ 300 mA Max
-15 VDC ±5% @ 100 mA Max

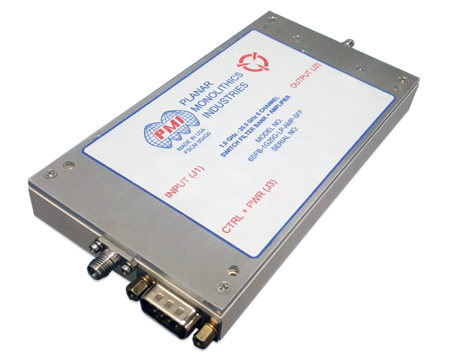

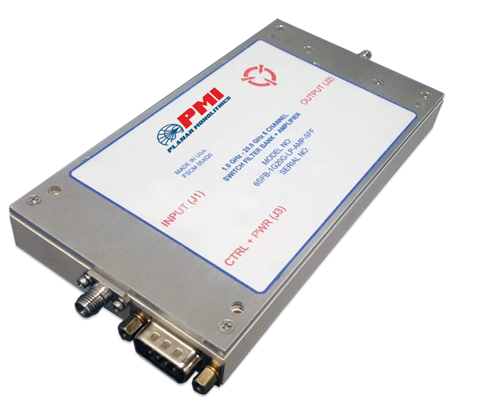

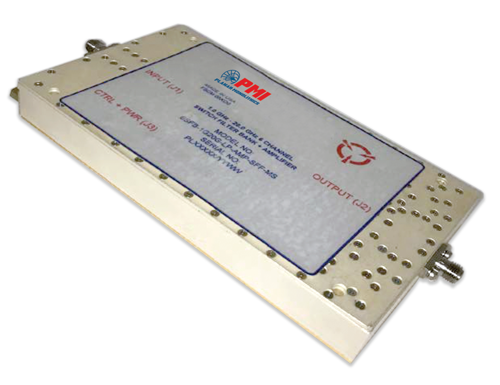

6SFB-1G20G-LP-AMP-SFF-MSActive61.0 GHz20.0 GHz
-
200 ns Typ (From 50% TTL to 90%/10% RF)TTL 3-Bit+15 VDC ± 5%
-15 VDC ± 5%
700 mA Max
100 mA Max
SFB4200-5200-7-SSActive60.8 GHz6.0 GHz5 dB goal, 6.5 dB max.100 ns max.TTL 3 Bit+5 V
-12 to -15 V
600 mA max.
50 mA max.
5SFB-118-CD-SFFPreliminary51.0 GHz18.0 GHz2.0 dB max.200 ns MaxTTL+12 VDC
-12 VDC
800 mA typ.
200 mA typ.
16SFB10G-16G-CD-SFF-NHActive162.0 GHz18.0 GHzCH. 1 - 6: 7.0 dB Max
CH. 7 - 16: 13.5 dB Max
2 US MaxTTL+5 VDC
-15 VDC
1500 mA
260 mA
5SFB-0D42D2-CD-SFFPreliminary50.4 GHz2.2 GHz4.5 dB Max200ns MaxTTL, 5 Lines+5 VDC/-5 VDC400 mA/100 mA
PEC-1227/1575-IAFS-SFFActive21.22760 GHz1575.42 GHz0 dB200 ns MaxTTL, 2 Lines+5 VDC180
3SFB-1G2R5G-CD-1Active31.0 GHz2.5 GHz5.5 dB typ.100 ns max.TTL, 2 Lines+15 VDC/-15 VDC200 mA max.
3SFB-2R5G7R5G-CD-1Active32.5 GHz7.5 GHz5.5 dB typ.100 ns max.TTL, 2 Lines+15 VDC/-15 VDC200 mA max.
5SFB-100M1G-CD-1Active50.1 GHz1.0 GHz6.0 dB typ.100 ns max.TTL, 3 Lines+15 VDC/-15 VDC200 mA max.
8SFB-7R5G18G-CD-1Active87.5 GHz18.0 GHz7.5 dB typ.100 ns max.TTL, 3 Lines+15 V/-15 V200 mA max.
5SFB-2R5G7R5G-CD-1Active52.5 GHz7.5 GHz6.5 dB typ.100 ns max.TTL, 3 Lines+15 VDC/-15 VDC200 mA max.
3SFB-7R5G18G-CD-1Active37.5 GHz18.0 GHz6.5 dB typ.100 ns max.TTL, 2 Lines+15 V/-15 V200 mA max.
4SFB9G-0R2-CD-SFFActive48.99 GHz10.42 GHz9.5 dB max. @ F01 us max.TTL, 4 Lines, "0 V" : Off, "5 V" : On+5 V/-15 V100 mA max.
7SFB-75M6-CD-SFFPreliminary70.075 GHz6.0 GHz7.0 dB typ., 8.0 dB max.1 us typ.TTL, "0" - On, "1" - Off+5 V200 mA typ.
8SFB-0R56-CD-SFFPreliminary80.5 GHz6.0 GHz6.0 dB typ., 7.0 dB max.200 ns typ., 500 ns max.TTL, "0" - On, "1" - Off+5 V500 mA typ.
6SFB-2-53-LP-AMP-SFFPreliminary62.0 GHz53.0 GHz
-
200 ns typ. (From 50% TTL to 90%/10% RF)TTL+15 V/-15 V1000 mA max./100 mA max.
6SFB-1G20G-LP-AMP-SFFActive61.0 GHz20.0 GHz20 to 25 dB Gain200 ns Typ
(From 50% TTL to 90%/10% RF)
TTL Compatible, 3 Bits Decoded+15 VDC
-15 VDC
800 mA Max
100 mA Max
24SFB-5D75G18D25G-2U-SFFPreliminary245.75 GHz18.25 GHz15 dB goal, 16 dB max.100 ns typ.TTL, 5-Bit Decoded+15 V/-15 V2000 mA typ./400 mA typ.
24SFB-5D75G18D25G-2U-SFF-AMPPreliminary245.75 GHz18.25 GHz0 dB100 ns typ.TTL, 5-Bit Decoded+15 V/-15 V2200 mA typ./400 mA typ.
3SFB-100M500M-CD-SFFPreliminary30.1 GHz0.5 GHz3.0 dB typ., 3.5 dB max.200 ns typ.TTL, "0" = On, "1" = Off+15 V/-15 V200 mA typ./100 mA typ.
6SFB-30M600M-CD-SFFPreliminary60.03 GHz0.6 GHz3.5 dB typ., 4.0 dB max.500 ns typ.TTL, "0" = On, "1" = Off+15 V/-15 V400 mA typ./100 mA typ.
8SFB-250M20G-CD-SFFActive100.25 GHz20.0 GHz8 dB100 nsTTL - Independent+15 VDC / -15 VDC500 mA / 100 mA
12SFB8D1G-15D8G-CD-SFFPreliminary120.2 GHz16.0 GHz5 dB100 nsTTL5, -5330, 30
3SFB3G-1G-CD-SFMPreliminary32.937 GHz3.062 GHz3.3 dB50 nsTTL5, -5300, 100
4ASFB-26R5G40G-20GNPreliminary426.5 GHz40.0 GHz25 dB max.30 nsTTL12, -12500, 100
4SFB-6G18G-BR-SFFPreliminary46.0 GHz18.0 GHz1 dB100nTTL12, -12400, 200
4SFB-9G18G-512-SFFPreliminary49.0 GHz18.0 GHz8 dB100 nsTTL5, -12400, 400
4SFB-DC22G-CD-SFFPreliminary4DC22.0 GHz7 dB500 nsTTL5, -15150, 100
5BRF-781M2600M-NFFPreliminary50.08 GHz6.0 GHz
-
200 nsTTL5, -12TBD
5SFB-DC26G-CD-SFF-2Preliminary5DC26.0 GHz10 dB500 nsTTL5, -15150, 100
7SFB-0R258R3-5-15-SFFActive70.25 GHz8.3 GHz5 dB0.8 usTTL5, -15195, 75
8SFB-6G18G-CD-15-SFF-HSSActive86.0 GHz18.0 GHz5.5 dB100 nsTTL15, -15200, 200
8SFB-9R8G18R1G-CD-12-SFFPreliminary89.8 GHz18.1 GHz6 dB200 nsTTL5, 12, -12-
SFB-2DR-10F-AA870Preliminary21.0100 GHz1.1100 GHz4 dB1 usTTL5, -12150, 80
SFB-2DR-9-AA870Preliminary28.5 GHz9.5 GHz4 dB1 usTTL5, -12150, 80
SFB4T-10G-S/SPreliminary4DC10.0 GHz6 dB1 usTTL5, -5250, 150
SFB-818-2TPreliminary28.0 GHz18.0 GHz2.8 dB1 usTTL5, -1070, 100
4SFB-26G40G-CD-292FFPreliminary426.0 GHz40.0 GHz13 dB100 nsTTL12, -12500, 100
4SFB-2G6G-BR-SFFPreliminary42.0 GHz6.0 GHz1 dB100 nsTTL12, -12400, 200
4SFB-2G6G-CD-5-N12-SFF-HSSActive42.0 GHz6.0 GHz5 dB100 nsTTL5, -15200, 200
8SFB-7R8G-18R1G-SFFPreliminary87.0 GHz7.8 GHz5 dB500 nsTTL+5 V/-12 V500 mA/100 mA
SFB-025-8DR-HPR4W-AL2Preliminary70.19 GHz2.01 GHz5 dB500 nsTTL5, -15500, 100
SFB-1083-2DR-MCTPreliminary21.8 GHz3.0 GHz3.5 dB500 nsTTL15, -1540, 100
SFB-13-6P-MCTPreliminary61.38 GHz2.62 GHz3.3 dB500 nsTTL15, -15700, 50
SFB-218-SP6DR-HPMActive62.0 GHz18.5 GHz6 dB1 usTTL15, -15250, 150
SFB4200-5200-6-SSPreliminary60.8 GHz6.0 GHz6.5 dB100 nsTTL5, -12600, 100
SFB750-250-2-SSPreliminary20.725 GHz0.875 GHz5 dB100 nsTTL5, -12150, 150
2SFB10G-600-CD-SFFActive29.7 GHz10.3 GHz7 dB500 nsTTL5, -1550, 75
3SFB-0R52R0-CD-SFFActive30.5 GHz2.0 GHz5 dB200 nsTTL5, -15120, 50
7SFB9500-18G-CD-SFFActive70.5 GHz18.5 GHz5 dB500 nsTTL5, -12175, 75
8SFB200-2500-CD-SFF-DI-DA-HSActive80.2 GHz2.5 GHz8.5 dB1 usTTL5, -570, 70
8SFB-2G4G-250M-CD-SFFActive82.0 GHz4.0 GHz6 dB100 nsTTL12, -12500, 200
SFB-4G18G-5-CD-SFF-SP3TActive1DC4.94 GHz5 dB50 nsTTL5, -5120, 45
7SFB-950M18G-CD-SFFActive80.95 GHz18.05 GHz9 dB100 nsTTL15, -15200, 200
PEC-218-BRF-SM-TNCFActive22.0 GHz18.0 GHz4 dB
-
-
+28 VDC
-
16SFB10G-16G-CD-SFFActive162.0 GHz18.0 GHz7 dB2 µsTTL5, -151500, 260
4SFB400-1000-CD-SFF-HSActive40.43 GHz1.07 GHz7 dB1 usTTL5, -5250, 150

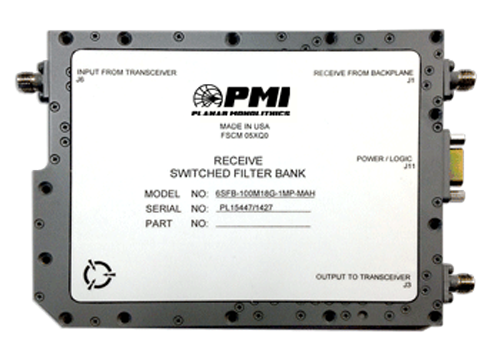

6SFB-100M18G-1MP-MAHActive50.1 GHz18.0 GHzTBD100 nsTTL-1, 5, 3.3TBD

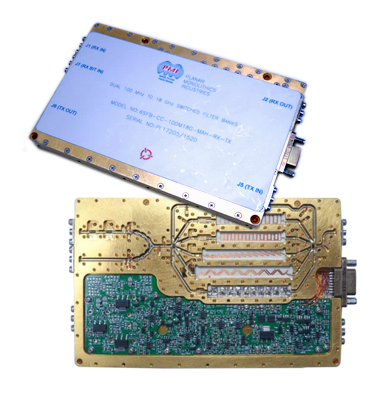

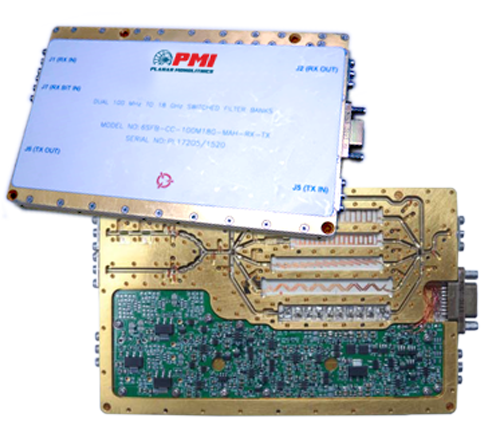

6SFB-HF-CC-100M18G-MAH-RX-TXActive50.1 GHz18.0 GHz
-
100 nsTTL12 VDC, 5 VDC, 3.3 VDC, -12 VDC600 mA, 550 mA, 0 mA, 300 mA
2SFB3000-6G-CD-SFFActive20.5 GHz6.0 GHz7 dB50 msCMOS+5 VDC
-5 VDC
70 mA
6SFB-100M18G-1MP-MAH-TXActive5 + Thrugh Path0.1 GHz18.0 GHz
-
100 nsTTL-1, 5, 3.3
-
4SFB-2G18G-CD-SFFActive42.0 GHz18.0 GHz5 dB Typ / 8 dB Max200 nsTTL+5 / -15 VDC115 mA / 115 mA
8SFB-7R0G7R8G-CD-12-SFFActive87.0 GHz7.8 GHz12 dB200 nsTTL+5
-12
650 mA typ.
100 mA typ.
SFB-6G18G-2CH-6DB-500NS-SFFActive26.0 GHz18.0 GHz6 dB500 nsTTL5, -5100, 50
2SFB-8G26G-CD-SFF Rev CActive28.0 GHz26.5 GHz5.5 dB100 nsTTL/CMOS+5 V ± 5%100 mA Max
4SFB-2G6G-CD-5-N12-SFFActive42.0 GHz6.0 GHz5 dB2 µsTTL5, -12200, 200
5SFB-DC26G-CD-SFFActive50.1 GHz26.0 GHz10 dB500 nsTTL5, -15150, 100
6SFB-CC-100M18G-MAH-RX-TXActive60.1 GHz18.0 GHz10 dB100 nsTTL+12 VDC
+5 VDC
+3.3 VDC
-12 VDC
600 mA max
550 mA max.
0 mA
300 mA max.
