PSAT-2500-11B-CD-1 Active
Digitally Controlled Attenuator / Analog Phase Shifter
Buy Now

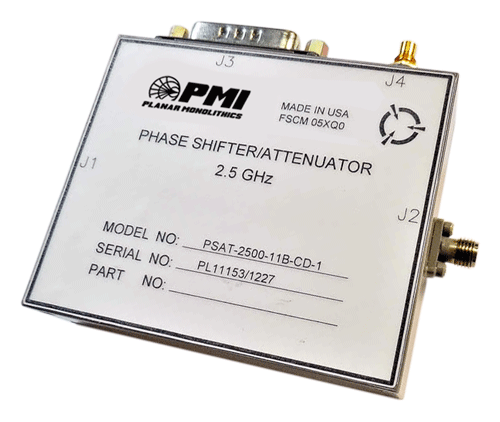

Quantic PMI Model PSAT-2500-11B-CD-1 is a 2.5 GHz, 11 Bit Digitally Controlled Attenuator / Analog Phase Shifter assembly having the capability for phase shifting from 0 to 360° with an attenuation range of 60 dB minimum. This model has insertion loss of 10 dB maximum and a VSWR of 1.5:1 maximum into 50 ohms. The phase shift speed is 50 ns maximum while the attenuation speed is 1 µs maximum. This model is designed to offer high levels of phase shift accuracy and attenuation accuracy over time and over an operating temperature range of 0 to +70 °C. This device is offered in a small housing that measures 3.0" x 2.5" x 0.85".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 2.39 - 2.61 |
| Frequency Min (GHz): | 2.39 |
| Frequency Max (GHz): | 2.61 |
| Attenuation Range (dB): | 60 dB Min |
| Insertion Loss (dB): | 10 dB Max |
| LSB: | 0.03125 dB |
| VSWR: | 1.5:1 Max |
| Power Supply: | +15 V @ 150 mA Max -15 V @ 60 mA Max |
| Digital Control: | 11 Bit |
| Connectors: | SMA Female (Input) / Male (Output) |
| Size: | 3.0" x 2.5" x 0.85" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -0 ºC to +70 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
