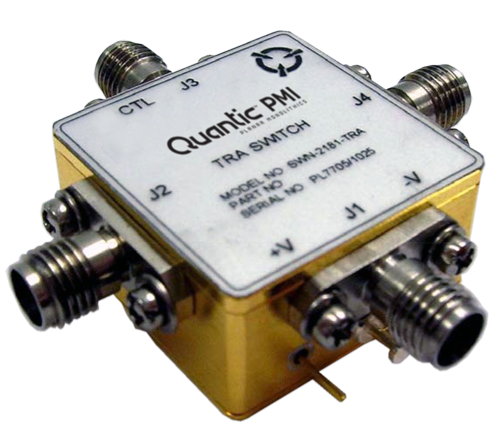

SWN-2181-TRA Active
Pin Diode Transfer Switch
Quantic PMI Model SWN-2181-TRA is a pin diode transfer switch that operates over a frequency range of 0.5 to 18 GHz. It has 60 dB minimum of isolation,, maximum insertion loss of 3.5 dB and a maximum input power of 10 dBm CW. This model incorporates a TTL compatible driver for easy system integration. Housing size is 1.0" x 1.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | XFER / DPDT |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.5 dB |
| Insertion Loss - Typ (dB): | 3.5 dB |
| Isolation (dB): | 60 dB |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 15 ns Max (Rise/Fall Time) 50 ns Typ, 100 ns Max (Delay On/Off) |
| Switching Speed - Typ: | 100 ns |
| Input Power: | 10 dBm CW Max |
| VSWR In/Out: | 2.0:1 Max |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Power Supply: | ±5 VDC @ 100 mA Nom |
| Control Signal: | TTL Logic |
| Power / Control Connector: | Solder Pins |
| Connectors: | 2.92mm Female |
| Size: | 1.0" x 1.0" x 0.25" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
