Part NumberStatusFrequencyFrequency MinFrequency MaxInsertion LossIsolationReflective / AbsorptiveSwitching Speed

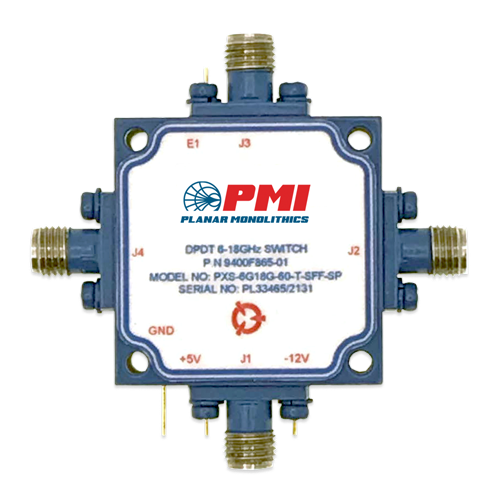

PXS-6G18G-60-T-SFF-SPActive6.0 to 18.0 GHz6.0 GHz18.0 GHz3.5 dB max.60 dB min.Absorptive70 ns max. (50% TTL to 10%/90% RF)
PXS-100M18G-65-T-SFFActive0.1 to 18.0 GHz0.1 GHz18 GHz3.1 dB max.65 dB max.Absorptive100 ns max.
PXS-2G18G-60-SFFPreliminary2.0 to 18.0 GHz2 GHz18 GHz3.0 dB max.60 dB min.Absorptive100 ns max.
PXS-400M10G-60-SFFPreliminary0.4 to 10 GHz0.4 GHz10 GHz3.25dB max.55dB min.Reflective30nsec max.
PXS-400M500M-60-SFFPreliminary0.4 to 0.5 GHz0.4 GHz0.5 GHz2.0 dB typical60 dB min.Reflective30nsec max.
PXS-9G10G-60-SFFPreliminary9.0 GHz to 10 GHz9 GHz10 GHz2.75dB max.55dB min.Reflective30nsec max.
SWN-2181-TRA-OPT0723Preliminary0.7 to 2.3GHz0.7 GHz2.3 GHz1.65 dB80 dBAbsorptiveRise/Fall Time: 15 ns max.
Delay On/Off: 50 ns typ., 100 ns max.
SWN-2181-TRA-TActive7.0 to 18.0 GHz7 GHz18 GHz5.0 dB Max ** - Measured 4.7 dB60 dB Min* - Measured 71.5 dBAbsorptive500 ns max.

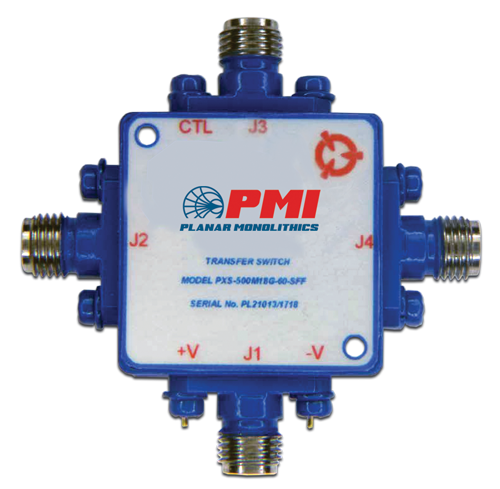

PXS-500M18G-60-SFFActive0.5 to 18.0 GHz0.5 GHz18 GHz3.0 dB Max - Measured 2.80 dB60 dB Min - Measured 83.90 dBAbsorptive100 ns Max - Measured 91.04 ns
PXS-4G8G-75-T-SFF *Active4.0 to 8.0 GHz4 GHz8 GHz1.9 dB max - Measured 1.42 dB75 dB min - Measured 81.42 dBAbsorptive100 ns max - Measured 49.6 ns
PXS-12G18G-65-T-SFF *Active12.0 to 18.0 GHz12 GHz18 GHz3.0 dB max - Measured 2.65 dB65 dB min - Measured 77.0 dBAbsorptive100 ns max - Measured 60 ns
PXS-1G18G-65-T-SFF *Active1.0 to 18.0 GHz1 GHz18 GHz3.1 dB max - Measured 2.72 dB65 dB min - Measured 70.2 dBAbsorptive100 ns max - Measured 49.6 ns
PXS-2G4G-75-T-SFF *Active2.0 to 4.0 GHz2 GHz4 GHz1.2 dB max - Measured 0.98 dB75 dB min - Measured 98.14 dBAbsorptive100 ns max - Measured 38.8 ns
PXS-8G12G-70-T-SFF *Active8.0 to 12.0 GHz8 GHz12 GHz2.2 dB max - Measured 1.72 dB70 dB min - Measured 85.4 dBAbsorptive100 nsec max - Measured 60 ns
PXS-1G2G-80-T-SFF *Active1.0 to 2.0 GHz1 GHz2 GHz1.0 dB max - Measured 0.76 dB80 dB min. - Measured 97.82 dBAbsorptive100 ns max - Measured 30 ns
PXS-10M1G-80-T-SFF *Active0.01 to 1.0 GHz0.01 GHz1 GHz1.3dB max80dB minAbsorptive100 ns max. - Measured 213 ns
SWN-2181-TRAPreliminary0.5 to 18.0 GHz0.5 GHz18 GHz3.5 dB60 dBAbsorptiveRise/Fall Time: 15 ns max.
Delay On/Off: 100 ns max.
