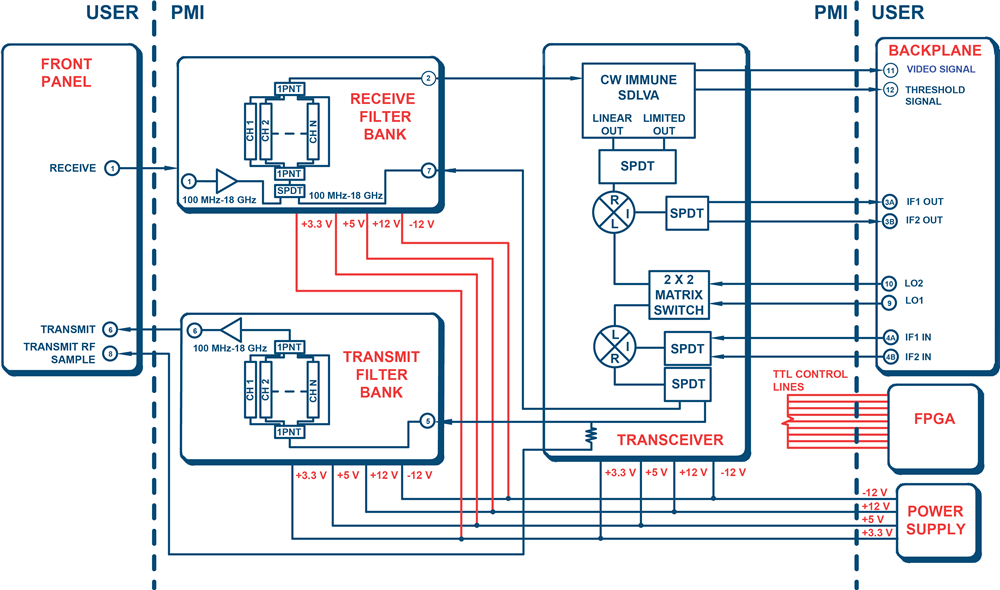

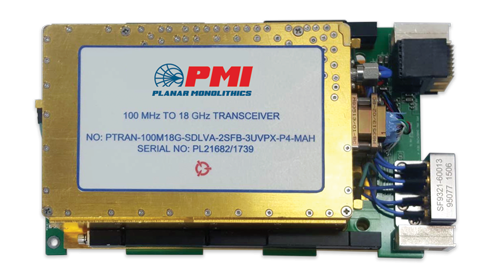

Quantic PMI Model No. PTRAN-100M18G-SDLVA-SFB-3UVPX-10HP-MAH-MX is a transceiver that covers the frequency range of 100 MHz to 18.0 GHz and fits into a 3U open VPX form factor utilizing the high-speed VITA 67 RF connector. This unit up-converts a 100 MHz to 4.0 GHz transmit signal to the 2.0 to 18.0 GHz range and down-converts a 100 MHz to 18.0 GHz received signal to the 100 MHz to 4.0 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-way absorptive switch to select an input, along with two 6-way switches allowing one of six filter paths to be chosen. A filter bank is also used on the transmit path, with two 6-way switches allowing one of six filter paths to be chosen. The unit is designed to attach to an FPGA controller card allowing for a total solution in a 10 HP (2”) form factor.

Product Specifications

General Parameters:
Inputs:J1, J4A, J4B, J9, J10
J1 Input:RF Receive Input
Frequency J1:100 MHz to 18.0 GHz
Power Level J1:-80 to -10 dBm Typ
Connector J1:SMPM (M)
J4A Input:IF1 Input
Frequency J4A:100 MHz to 4.0 GHz
Power Level J4A:-8 dBm Typ
Connector J4A:VITA 67
J4B Input:IF2 Input
Frequency J4B:100 MHz to 4.0 GHz
Power Level J4B:-8 dBm Typ
Connector J4B:VITA 67
J9 Input:LO1 Input
Frequency J9:4.0 to 20.0 GHz
Power Level J9:+10 dBm Min, +20 dBm Typ
Connector J9:VITA 67
J10 Input:LO2 Input
Frequency J10:4.0 to 20.0 GHz
Power Level J10:+10 dBm Min, +20 dBm Typ
Connector J10:VITA 67
Outputs:J3A, J3B, J6, J8, J11, J12
J3A Output:IF1 Output
Frequency J3A:100 MHz to 4.0 GHz
Power Level J3A:-5 dBm Max for Limited SDLVA Channel
Connector J3A:VITA 67
J3B Output:IF2 Output
Frequency J3B:100 MHz to 4.0 GHz
Power Level J3B:-5 dBm Max for Limited SDLVA Channel
Connector J3B:VITA 67
J6 Output:RF Transmit Output
Frequency J6:100 MHz to 18.0 GHz
Power Level J6:-40 to -30 dBm Typ
Connector J6:SMPM (M)
J8 Output:RF Transmit Sample
Frequency J8:100 MHz to 18.0 GHz
Power Level J8:-40 to -30 dBm Output
Connector J8:SMPM (M)
J11 Output:Log Proportional Detected Video Output (V1)

Connector J11:

SMA (F) (Cabled to UMC (F))
J12 Output:Threshold Detected Video Output (V0)
Connector J12:
Mezzanine Connector
Power Supply:Provided by open VPX Backplane through P0 Connector rated for the below voltages:
+12 V - 2 A
+5 V - 1.5 A
+3.3 V - 0.5 A
-12 V - 1 A
Size:6.299" x 3.937" x 1.915"
RF Connectors:VITA 67, 8 Position
Digital Control:TTL Through Mezzanine Connector
Finish:Gold Plated
Control Logic:TTL ('0': 0 - 0.8 Volts), ('1': 2 - 5 Volts)
TTL 1:Transmit path output select, receive filter bank input select
TTL 1: 0:Output to TX Filter Bank, RX-Backplane/Input (J1)
TTL 1: 1:Output to RX Filter Bank, RX - Transceiver Input
TTL 2:Receive Filter Select
TTL 2: 000:Through Channel
TTL 2: 001:Channel 1
TTL 2: 010:Channel 2
TTL 2: 011:Channel 3
TTL 2: 100:Channel 4
TTL 2: 101:Channel 5
TTL 2: 110:Not Defined
TTL 2: 111:Not Defined
TTL 3:Linear or Limited SDLVA RF Output Channel
TTL 3: 0:Limited RF Output Channel
TTL 3: 1:Linear RF Output Channel
TTL 4:Receive Through Channel or Down-Converted Channel
TTL 4: 0:Through Channel
TTL 4: 1:Down-Converted Channel
TTL 5:IF1 or IF2 Output Channel
TTL 5: 0:IF1 Output Channel
TTL 5: 1:IF2 Output Channel
TTL 6:IF1 or IF2 Input Select
TTL 6: 0:IF1 Input Channel
TTL 6: 1:IF2 Input Channel
TTL 7:Transmit Through Channel or Down-Converted Channel
TTL 7: 0:Through Channel
TTL 7: 1:Up-Converted Channel
TTL 8:Transmit Filter Select
TTL 8: 000:Through Channel
TTL 8: 001:Channel 1
TTL 8: 010:Channel 2
TTL 8: 011:Channel 3
TTL 8: 100:Channel 4
TTL 8: 101:Channel 5
TTL 8: 110:Not Defined
TTL 8: 111:Not Defined
TTL 9:5 Bit Attenuation Control (1 dB Steps)
TTL 9: 00000:0 dB Attenuation
TTL 9: 11111:31 dB Attenuation
TTL 10:LO Select
TTL 10: 00:M1-LO1 M2-LO1
TTL 10: 01:M1-LO1 M2-L02
TTL 10: 10:M1-LO2 M2-LO1
TTL 10: 11:M1-LO2 M2-LO2
TTL 11:SDLVA Threshold Adjust
TTL 11: 000000:Lowest Threshold Level
TTL 11: 111111:High Threshold Level
TTL 12:SDLVA CTL A (Enable)
TTL 12: 0:Internal Comparator Triggered SPST
TTL 12: 1:External Trigger Enable (SW CTL B)
TTL 13:SDLVA CTL B (Trigger)
TTL 13: 0:Limited RF CH SPST Switch On (Insertion Loss)
TTL 13: 1:Limited RF CH SPST Switch Off (Isolation)
J1 Path Gain:18 dB Typ
J7 Path Insertion Loss:10 dB Typ
Isolation:J1, J7 100 dB
Gain:32 dB Typ
VSWR over 90% Passband:2:1 Max
Switching Speed:100 ns Typ
Through Channel Passband:100 MHz to 18.0 GHz
Channel 1 Center Frequency:3400 MHz
Channel 1 3 dB Bandwidth:2000 MHz
Channel 1 Rejection:-40 dBc Typ. 100 MHz to 2 GHz, -30 dBc Min
-40 dBc Typ 4.8 to 18.0 GHz, -30 dBc Min
Channel 2 Center Frequency:5400 MHz
Channel 2 3 dB Bandwidth:2000 MHz
Channel 2 Rejection:-40 dBc Typ. 100 MHz to 4.0 GHz, -30 dBc Min
-40 dBc Typ 6.8 to 18.0 GHz, -30 dbc Min
Channel 3 Center Frequency:7400 MHz
Channel 3 3 dB Bandwidth:2000 MHz
Channel 3 Rejection:-40 dBc typ. 100 MHz to 6.0 GHz, -30 dBc Min
-40 dBc Typ 8.8 to 18.0 GHz, -30 dBc Min
Channel 4 Center Frequency:9400 MHz
Channel 4 3 dB Bandwidth:2000 MHz
Channel 4 Rejection:-40 dBc Typ 100 MHz to 8.0 GHz, -30 dBc Min
-40 dBc Typ 10.8 to 18.0 GHz, -30 dBc Min
Channel 5 Center Frequency:11400 MHz
Channel 5 3 dB Bandwidth:2000 MHz
Channel 5 Rejection:  -40 dBc Typ: 100 MHz to 10.0 GHz, -30 dBc Min
-40 dBc Typ: 12.8 to 18.0 GHz, -30 dBc Min
V0 (Video Comparator Signal Amp.): LVTTL
Video Comparator Delay:50 ns Typ
Video Comparator Threshold Level:Adjustable with Analog Voltage, -60 dBm ± 3.0 dB Max
V1 (Log Video Signal Amp.): 1 Volt Max
Log Slope:10 mV/dB into a 50-Ohm Load (± mV) Max
Log Range:  -65 to +5 dBm Min
Log Linearity:±1.75 dB (-40 °C to +85 °C) Max
Pulse Range: 100 to 250 µs
Rise Time:35 ns Max
Settling Time to ±1 dB: 50 ns Typ
Recovery Time:350 ns Max
CW Immunity Range:TSS to -45 dBm (1 dB Degradation)
Pulse Considered CW:1 ms Typ
Rejection Time:1 ms Typ
Droop:1 dB Max
SPST Isolation:70 dB Typ
SPST Switch Speed: 20 ns Typ
SW CTL A (Enable):TTL 0: Internal Comparator Triggered SPST,
TTL 1: External Trigger Enable (SW CTL B)
SW CTL B (Trigger):TTL 0: Limited RF CH SPST Switch On (Insertion Loss),
TTL 1: Limited RF CH SPST Switch Off (Isolation)


Product Specifications

General Parameters:
Status: Active
Product Details: Quantic PMI Model No. PTRAN-100M18G-SDLVA-SFB-3UVPX-10HP-MAH-MX is a transceiver tha covers the frequency range of 100 MHz to 18.0 GHz and fits into a 3U open VPX form factor utilizing the high-speed VITA 67 RF connector. This unit up-converts a 100 MHz to 4.0 GHz transmit signal to the 2.0 to 18.0 GHz range and down-converts a 100 MHz to 18.0 GHz received signal to the 100 MHz to 4.0 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-way absorptive switch to select an input, along with two 6-way switches allowing one of six filter paths to be chosen. A filter bank is used also on the transmit path, with two 6-way switches allowing one of six filter paths to be chosen. The unit is designed to attach to an FPGA controller card allowing for a total solution in a 10 HP (2”) form factor.
