5BP200-50-3B-SFF

Model 5BP200-50-3B-SFF is a a band pass filter centered at 200MHz. The nominal bandwidth is 50MHz.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency, Fo: 200 MHz
Bandwidth: 50 MHz
Passband Insertion Loss: 2.0 dB
Passband VSWR: 1.5:1
Rejection: -35dBc @ 100 and 400MHz
Connectors In/Out: SMA (F/F)

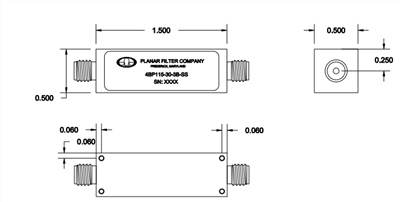

Size: 1.5"L x 0.5"W x 0.5"H
Environmental Ratings:
Operating Temperature: -40ºC to +85 ºC
Non-Operating Temperature: -40ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
