Broadband Low Noise Amplifiers (LNA)

Quantic PMI's Broadband Low Noise Amplifiers (LNA) offer the industry’s lowest Noise figure available up to 70 GHz, internal voltage regulation, internal reverse voltage protection, multichannel configurations, 2-IN-1 dual use connectorized or surface mount designs, and unconditional stability.  Frequency range, gain and OP1dB values can be optimized to meet your requirements. Form, Fit, and Function designs are our specialty.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusFrequency Min (GHz)Frequency Max (GHz)Gain (dB)Noise Figure (dB)OP1dB (dBm)Psat (dBm)
QSM-520-22-4-17-SFFActive5 GHz20 GHz22 dB Min to 26 dB Typ4 dB Max14 dBm Min
-
PE2-12-30M40G-5R5-15-12-292FF
Active		Active0.034012 dB Typ, 9.5 dB Min10.5 dB Max (0.03 to 0.5 GHz),
6.5 dB Max (0.5 to 26 GHz),
8.5 dB Max (26 to 40 GHz)		14 dBm Min
-
PLNA-2G8G-35-2R2-15DBM-12V-SFF
Active		Active2832.5 dB Min,
37.5 dB Max		2.2 dB Max (@ +25 °C),
2.4 dB Max (@ +70 °C)
-
-
PE2-25-200M18-3D5-25-SFF
Active		Active0.21825 dB Typ,
23 dB Min		9 dB Max (0.2 to 0.5 GHz),
5 dB Max (0.5 to 18 GHz)		25 dBm Typ,
23 dBm Min
-
PE2-20-2G18G-6D5-SFF
Preliminary		Preliminary21820 dB Typ6.5 dB Max,
4 dB Typ		26 dBm Typ
-
PEC-20-1840-8-12-292FF
Preliminary		Preliminary184017 to 21 dB Typ3.7 dB Typ8 dBm Typ
-
PLNA-2G4G-42-3DB-9DBM-SFF
Active		Active2439 dB Min,
45 dB Max		3 dB Max
-
7 dBm Min,
11 dBm Max
PLNA-30M2G-35DB-5DB-10DBM-SFF-YK
Preliminary		Preliminary0.03230 dB Min,
40 dB Max		5 dB Typ,
6 dB Max		10 dBm Min
-
PEC-30-218-5-25-15-SFF-QB
Active		Active21826 dB Min,
32 dB Max		5 dB Max,
3 dB Typ		23 dBm Min
-
PLNA-2G18G-33DB-3DB-10DBM-SFF-YK
Preliminary		Preliminary21830 dB Min,
36 dB Max		3.4 dB at +25 °C Max,
3.8 dB at +85 °C Max		10 dBm Min,
15 dBm Typ
-
PLNA-30-8G12G-6DB-10DBM-12V-SFF
Preliminary		Preliminary81229 dB Min
31 dB Max		6 dB Max10 dBm Max
-
PE2-30-8G12G-6DB-10DBM-12V-SFF
Preliminary		Preliminary81229 dB Min
31 dB Max		6 dB Max10 dBm Max
-
PLNA-4G8G-42-4D5DB-10BBM-SFF
Active		Active4839 dB Min,
45 dB Max		4.5 dB Max
-
8 dBm Min,
12 dBm Max
PLNA-25DB-8G18G-2PP-4DB-15DBM-SFF-YK
Active		Active81823 dB Min,
27 dB Max		4 dB Max15 dBm Min
-
PLNA-80M400M-26DB-4DB-15DBM-SFF-YK
Active		Active0.080.424 dB Min
28 dB Max		4 dB Max15 dBm Min
-
PLNA-39-8G18G-5NF-8DBM-12V-SFF
Active		Active81836 dB Min,
42 dB Max		4 dB Max @ 25°C,
5 dB Max
-
6 dBm Min,
10 dBm Max
PLNA-42D5-8G18G-5NF-15DBM-12V-SFF
Active		Active81839 dB Min,
46 dB Max		5 dB Max,
4 dB Max @ 25°C
-
15 dBm Min
PE2-1018-0R518-12-15-SFF-CCA
Preliminary		Preliminary0.51810 dB Typ (@ 0.5 GHz - positive gain slope to 20 dB Typ @ 18 GHz)10 dB Typ (@ 0.5 GHz),
9 dB Typ (@ 18 GHz)		14 dBm Min
-
PLNA-910-16-6-17-SMF
Active		Active91016 dB Min3 dB Max17 dBm Min
-
PLNA-9D810D6-20-2-17-SFF
Active		Active9.810.620 dB Min2 dB Max17 dBm Min
-
PLNA-44-100M18-SFF
Active		Active0.11838 dB Min3.5 dB Typ12 dBm Min13 dBm Typ
PLNA-44-16K18G-SFF
Preliminary		Preliminary0.0000161836 dB Min3.5 dB Typ12 dBm Min16 dBm Typ
PEAFS3-14-0R2535R0-6R5-23-12-292MF
Active		Active81813 ± 2 dB Max4 dB Typ, 5 dB Max24 dBm Min28 dBm
PLNA-9-1G2G-20-SMF
Active		Active129 dB Min4.5 dB Max up to +25°C,
5 dB Max @ +85°C
-
-
GMLA-0520-10
Preliminary		Preliminary0.050.211 to 13.5 dB5 dB Max @ +25 °C
-
-
PEC-14-2G18G-4-27-15-SFF*
Active		Active2813 ± 1.5 dB Max5 dB Typ, 6 dB Max (2 to 3 GHz),
4.5 dB Typ, 5 dB Max (3 to 5 GHz),
3.5 dB Typ, 4.5 dB Max (5 to 8 GHz)		26 dBm Min,
27.5 dBm Typ		29 dBm Typ
PEC-8G18G-12-16V-SFF
Preliminary		Preliminary81835 dB Max2 dB Typ, 2.5 dB Max20 dBm Typ, 22 dBm Min25 dBm Typ
PEC-4G8G-12-16V-SFF
Preliminary		Preliminary4840 dB Typ, 43 dB Max0.8 dB Typ, 0.95 dB Max12 dBm Typ, 15 dBm Min16 dBm Typ
PLNA-50M1G-40-1DB-16DBM-SFF
Preliminary		Preliminary0.05137 dB Min,
40 dB Typ,
42 dB Max		0.8 dB Typ,
1 dB Max (@ 25 ºC)		28 dBm Min,
31.5 dBm Typ
-
PLNA-2G4G-40-1DB-12DBM-SFF
Preliminary		Preliminary2437 dB Min,
40 dB Typ,
43 dB Max		0.8 dB Typ,
1 dB Max (@ 25 ºC)		12 dBm Min,
14 dBm Typ
-
PLNA-1G2G-40-1DB-14DBM-SFF
Preliminary		Preliminary1237 dB Min,
40 dB Typ,
43 dB Max		0.8 dB Typ, 1 dB Max (@ 25 ºC)14 dBm Min, 16 dBm Typ
-
PE2-20-1G40G-5R5-15-12-292FF-OPT224
Preliminary		Preliminary22420 dB Min5 dB Max21 dBm Min
-
PMI-AFD4-020080-23P-SMA-2
Active		Active2832 dB Min4.5 dB Max
-
-
LNA-4G18G-40-10DBM-SFF
Active		Active41838 dB Min, 41 dB Typ3 dB Max (-54 to +25 °C),
3.2 dB Max (+71 °C)		10 dBm Min
-
LNA-0R95G2G-40-10DBM-SFF
Active		Active0.95238 dB Min,
41 dB Typ		1.5 dB Max (-54 to +25 °C),
1.7 dB Max (+71 °C)		10 dBm Min
-
LNA-0R3G4G-40-10DBM-SFF
Active		Active0.3438 dB Min,
41 dB Typ		1.8 dB Max (-54 to +25 °C),
2.2 dB Max (+71 °C)		10 dBm Min
-
PE2-618-20-4D5-14-SFF
Active		Active61818 dB Min, 19 dB Typ4.5 dB Max3 dBm Min, 5 dBm Typ
-
PE2-618-25-4D5-27-SFF
Active		Active61826 dB Min,
28 dB Max		4.5 dB Max24 dB Min
-
PEC-42-500M40G-20-12-292FM
Preliminary		Preliminary0.54042 dB Typ5.5 dB Typ (Up to 26.5 GHz)19 dBm (1 to 18 GHz) Typ,
17 dBm (18 to 40 GHz) Typ		23 dBm (1 to 18 GHz) Typ,
20 dBm (18 to 40 GHz) Typ
LNA-35-1G4G-SFF
Preliminary		Preliminary1435 dB Typ1 dB Typ,
1.2 dB Max		20 dBm Typ
-
PMI-AFD4-020080-23P-SMA
Active		Active2828 dB Min
35 dB Max		3.5 dB Max23 dBm Min
-
PEC-4025-218-21-12-SFF-TTLVG-V2
Preliminary		Preliminary21825 to 41 dB @ -25 °C (Max to Min Gain),
25 to 41 @ +25 °C (Max to Min Gain),
23 to 38 @ +75 °C (Max to Min Gain)		4 to 6 dB Max @ -25 °C (Max to Min Gain),
4.75 to 7 dB Max @ +25 °C (Max to Min Gain),
5.75 to 8 dB @ +75 °C (Max to Min Gain)		20 dB Min
-
PLNA-30-10M20-SFF-DCSMA-12V
Preliminary		Preliminary0.012026 dB Min (0.01 to 18 GHz),
28 dB Min (18 to 20 GHz)		3 dB Max (0.2 to 0.5 GHz),
2.5 dB Max (0.5 to 18 GHz),
3.3 dB Max (18 to 20 GHz)		14 dBm Min (0.01 to 18 GHz),
13 dBm Min (18 to 20 GHz)		15 dBm Min (0.01 to 18 GHz),
14 dBm Min (18 to 20 GHz)
PLNA-30-10M20-SFF-DCSMA
Active		Active0.012026 dB Min (0.01 to 18 GHz),
28 dB Min (18 to 20 GHz)		3.5 dB Max (0.01 to 0.5 GHz),
3.5 dB Max (0.5 to 18 GHz),
4 dB Max (18 to 20 GHz)		14 dBm Min (0.01 to 18 GHz),
13 dBm Min (18 to 20 GHz)		15 dBm Min (0.01 to 18 GHz),
14 dBm Min (18 to 20 GHz)
PEC-36-18G40G-15-12-292FF
Preliminary		Preliminary184032 dB Min, 45 dB Max8 dB Max15 dBm Min
-

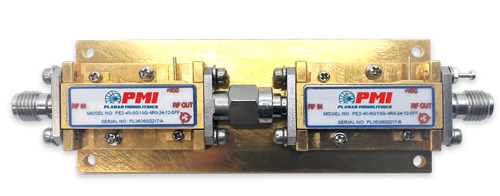

PE2-45-6G18G-4R5-24-12-SFF
Active		Active61844 dB Min, 47 dB Max4.5 dB Typ24 dBm Min
-
PE2-20-1G40G-5R5-15-12-24FF
Preliminary		Preliminary14020 dB Min4 dB Typ15 dBm Min
-
PEC-30-500M40G-20-12-292FF-QB
Preliminary		Preliminary0.54035 dB (0.5 to 20 GHz),
30 dB (20 to 40 GHz)		5.5 dB Typ (Up to 26.5 GHz)20 dBm Typ (1 to 18 GHz),
15 dBm Typ (18 to 40 GHz)		23 dBm Typ (1 to 18 GHz),
18 dBm Typ (18 to 40 GHz)
PEC-30-10M20-SFF-ROHS
Active		Active0.012026 dB Min (0.01 to 18 GHz),
28 dB Min (18 to 20 GHz)		13 dB Max (0.01 to 0.02 GHz),
7 dB Max (0.02 to 0.05 GHz),
4.5 dB Max (0.05 to 0.5 GHz),
3.5 dB Max (0.5 to 18 GHz),
4 dB Max (18 to 20 GHz)		14 dBm Typ, 13.5 dBm Min (0.01 to 18 GHz),
13 dBm Typ, 12 dBm Min (18 to 20 GHz)		15 dBm Min (0.01 to 18 GHz),
13 dBm Min (18 to 20 GHz)
PEC-42-500M40G-20-12-292MF-BG
Active		Active0.54040 dB Typ5.5 dB Typ (Up to 26.5 GHz)19 dBm Typ (1 to 18 GHz),
17 dBm Typ (18 to 40 GHz)		23 dBm Typ (1 to 18 GHz),
20 dBm Typ (18 to 40 GHz)
PEC-30-10M20-SFF
Active		Active0.012026 dB Min (0.01 to 18 GHz),
28 dB Min (18 to 20 GHz)		13 dB Max (0.01 to 0.02 GHz),
7 dB Max (0.02 to 0.05 GHz),
4.5 dB Max (0.05 to 0.5 GHz),
3.5 dB Max (0.5 to 18 GHz),
4 dB Max (18 to 20 GHz)		13.5 dBm Min (0.01 to 18 GHz),
12 dBm Min (18 to 20 GHz)		15 dBm Min (0.01 to 18 GHz),
13 dBm Min (18 to 20 GHz)
PEAFS3-14-100M6G-SFF
Active		Active0.1614 dB Typ3 dB Max,
2.5 dB Typ		14 dBm Typ,
12 dBm Min		16 dBm Typ,
14 dBm Min
PEC-100M18-30-4D5-20-15-SFF
Active		Active0.11830 dB Min4.5 dB Max (not guaranteed below 0.7 GHz)20 dBm Min
-
PEC-28-20-3D5-20-15-SFF
Preliminary		Preliminary2819 dB Typ3.5 dB Typ20 dBm Min,
21 dBm Typ
-
PEC-418-20-5-21-15-SFF
Preliminary		Preliminary4819.5 dB Min5 dB21 dBm Min, 22 dBm Typ
-
LNA-0R518G-45-10DBM-SFF
Active		Active0.5 (Operational to 0.1 GHz with no degradation)1845 dB Typ3.5 dB Max10 dBm Min
-
PEAFS3-14-10M22G-292FF
Active		Active0.012214 dB Typ3 dB Typ (0.02 to 0.5 GHz),
2.5 dB Typ (0.5 to 18 GHz),
3.4 dB Typ (18 to 22 GHz)		14 dBm Typ (0.01 to 18 GHz),
13 dBm Typ (18 to 22 GHz)		16 dBm Typ (0.01 to 18 GHz),
15 dBm Typ (18 to 22 GHz)

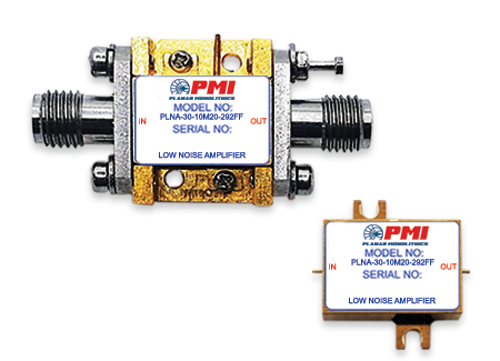

PLNA-30-10M20-292FF
Active		Active0.012026 dB Min (0.01 to 18 GHz),
28 dB Min (18 to 20 GHz)		3 dB Typ (0.02 to 0.5 GHz),
2.5 dB Typ (0.5 to 18 GHz),
3.3 dB Typ (18 to 20 GHz)		14 dBm Typ (0.01 to 18 GHz),
13 dBm Typ (18 to 20 GHz)		15 dBm Typ (0.01 to 18 GHz),
14 dBm Typ (18 to 20 GHz)
PE2-35-8G12G-2R5-15-12-SFF-PAM
Preliminary		Preliminary81230 dB Min2.5 dB Max15 dBm Min
-
PE2-20-818-4R0-8-12-SFF
Active		Active81820 dB Typ4 dB Max8 dBm Min
-
PE2-20-811-3R5-15-SFF
Active		Active81120 dB Typ3.5 dB Max15 dBm Min
-
PE2-38-218-4R5-17-15-SFF
Active		Active21838 dB Min4.5 dB Typ17 dBm Min
-
PE2-28-1R018R0-5R0-20LM-12-SFF
Active		Active11828 dB Typ5.5 dB Max15 dBm Min18 dBm Typ
PE2-29-1218-4R0-20-12-SFF
Active		Active121829 dB Min4 dB Max20 dBm Min
-
PE2-30-818-5R0-15-12-SFF
Active		Active81830 dB Min6 dB Max10 dBm Min
-
PM2-26-120-21-15-SFF
Active		Active12026 dB Nom4.5 dB Max21 dBm Min
-
PE2-25-810-3R5-22-15-SFF
Active		Active81025 dB Typ4 dB Max21 dBm Min
-
PE2-30-18G26G-3R0-17-12-292FF
Active		Active182630 to 33 dB Typ3 dB Typ17 dBm Typ
-
PE2-34-220-8-15-SFF-OPT800M
Active		Active22020 dB Min (0.8 to 2 GHz),
34 dB Min (2 to 20 GHz)		5.3 dB Typ (0.8 to 2 GHz),
4.5 dB Max (2 to 20 GHz)		8 dBm Min
-
PE2-15-218-7R0-25-12-SFF
Active		Active21814 dB Typ7.5 dB Max25 dBm Min
-
PE2152518R515SFFLM
Active		Active0.2518.515 dB Nom6.5 dB Max16 dBm Min
-
PE2-40-218-5R0-12-SFF-TC
Active		Active21838 dB Typ4.5 dB Max8 dBm Min
-
PM2-26-118-21-15-SFF
Active		Active11826 dB Min5 dB Max21 dBm Min
-
PE2-28-30M18G-5R0-12-12-SFF
Active		Active0.051828 dB Typ8.5 dB Max12 dBm Min
-
PE2-26-0R58-5R0-23-12-SFF
Active		Active0.5826 dB Min6 dB Max25 dBm Typ, 23 dBm Min
-
PE2-38-218-4R5-8-15-SFF
Active		Active21838 dB Min3.8 dB Typ, 4.7 dB Max8 dBm Min
-
PM2-15-0R520-17-15-SFF
Active		Active0.51916 dB Typ7 dB Max18.5 dBm Min
-
PE2-50-24-2R5-15-15-SFF
Active		Active2451 dB Typ, 48 dB Min2.5 dB Max12 dBm Min
-
PM2-22-0R58-20-15-SFF
Active		Active0.4758.121 dB Min8.5 dB Max21 dBm Min
-
PE2-30-812-6R0-28-12-SFF
Active		Active81230 dB Min6 dB Max28 dBm Min,
30 dBm Typ
-
PE2-50-911-2R5-10-15-SFF
Active		Active91150 dB Typ,
40 dB Min		2.5 dB Max10 dBm Min
-
PEC-70-9G-VSBA
Active		Active7970 dB Min2 dB Max
-
-
PE2-20-1G40G-5R5-15-12-292FF *
Active		Active14020 dB Min4 dB Typ15 dBm Min
-
PE2-45-1R018R0-4R5-24-12-SFF
Active		Active11845 dB Typ4.5 dB Typ24 dBm Min
-
PE2-30-0R12-20-12-SFF
Active		Active0.1230 dB5 dB Max20 dBm Min
-
PE2-15-0R52-5R0-20-12-SFF
Active		Active0.5215 dB Typ5 dB Max20 dBm Min
-
PE2-29-0R118-5R0-20-15-SFF
Active		Active0.11826 dB Min, 29 dB Typ5 dB Max20 dBm Min
-
PE2-30-R502-15-SFF
Active		Active0.5233 dB Typ3 dB Max12 dBm Min
-
PE2-38-218-3R5-14-15-SFF
Active		Active21838 dB Typ4.5 dB Max8 dBm Min
-
PE2-10-450M-5R0-10-12-SFF
Active		Active0.410.9110 dB Typ5 dB Max10 dBm Min
-
PE2-36-0R518-15-SFF
Active		Active0.51836 dB Nom6.5 dB Max13 dBm Min
-
PE21020R51815SFF
Active		Active0.51810 dB @ 0.5 GHz,
18 dB @ 18 GHz
-
12 dBm Min
-
PE2-27-812-1R8-10-12-SFF-BT
Active		Active81227 dB Typ1.8 dB Max10 dBm Min
-
PEC-18-250K3R4G-12-PP
Active		Active0.000253.416 dB Min8 dB Max26 dBm Min
-
PE2-20-0R52-20-15-SFF
Active		Active0.5222 dB Typ4.5 dB Max20 dBm Min
-
PE2-30-24-1R6-10-12-SFF-BT
Active		Active2435 dB Typ1.6 dB Max10 dBm Min
-
PE2-25-1218-3R0-10-12-SFF-BT
Active		Active121828 dB Typ3 dB Max10 dBm Min
-
PE2-20-2G18G-5R5-20-12-SFF
Active		Active21820 dB Min5.5 dB Max19 dBm Min
-
PE2-25-0R15-15-SFF-HIP
Active		Active0.1525 dB Typ8 dB Max5 dBm
-
PE2-25-6R418-4R0-13LM-9-SFF-HS
Active		Active6.41826 dB Typ5.75 dB Max5 to 20 dBm13 dBm Typ
PE2-28-24-1R8-10-15-SFF
Active		Active2428 dB Min1.8 dB Max12 dBm Min
-
PM2-30-812-25-15-SFF
Active		Active81234 dB Typ3 dB Max25 dBm Min
-
PE2-25-0R15-15-SFF
Active		Active0.1525 dB Typ8 dB Max5 dBm Min
-
PE2-48-218-12LM-5-SFF
Active		Active21845 to 50 dB Typ5 dB12 dBm
-
PE2-0R518-15-SFF
Active		Active0.51838 dB Typ6.5 dB Max8 dBm Min
-
PE2-10-7R519-15-SFF-LM
Active		Active7.51910 dB Typ4.5 dB Max16 dBm Min
-
PE2-15-R2518R5-15-SFF-LM
Active		Active0.2518.515 dB Typ6.5 dB Max16 dBm Min
-
PE2-16-621-6R0-18-12-SFF
Active		Active62117 dB Typ6 dB Max18 dBm Min
-
PE2-28-4G8G-2R0-10-12-SFF
Active		Active4828 dB Min2 dB Max10 dBm Min
-
PE2-15-7R519-15-SFF-LM
Active		Active7.51920 dB Typ5 dB Max16 dBm Min
-
PE2-35-118-8-15-SFF
Active		Active11836 dB Typ4.7 dB Max8 dBm Max
-
PM2-38-218-4R5-17-15-SFF
Active		Active21840 dB Typ4.7 dB Max16 dBm Min
-
PE2-15-500M2G-5R0-20-12-SFF
Active		Active0.5215 dB Min5 dB Max20 dBm Min
-
PE2-27-218-20-12-SFF
Active		Active21830 dB Typ4.5 dB Max20 dBm Min
-
PE2-30-48-1R7-10-12-SFF-BT
Active		Active4834 dB Typ1.75 dB Max10 dBm Min
-
PE2-15-0R0310-7R5-16-5-SFF
Active		Active0.031015 dB Typ7.5 dB Max16 dBm Min
-
PE2-17-218-20-12-SFF
Active		Active21817 dB Typ4.5 dB Max20 dBm Min
-
PE2-20-0R52-1R25-15-SFF
Active		Active0.52.020 dB Typ1.5 dB Max18 dBm Min
-
PE2-16-48-1R7-12-15-SFF
Active		Active4816 dB Typ2.5 dB Max10 dBm Max
-
PE2-18-0R0518-15-SFF
Active		Active0.051818 dB Typ7.5 dB Max12 dBm Min
-
PE2-20-0R120-15-SFF
Active		Active0.12020 dB8 dB Max10 dBm Min
-
11CD0043-1
Active		Active2631 ± 1.5 dB3 dB Nom,
3.8 dB over temperature		27 dBm
-
PM2-25-218-15-SFF
Active		Active21828 dB Typ5 dB Max18 dBm Min
-
PM2-21-818-23-15-SFF
Active		Active81824 dB Typ6 dB Max23 dBm Min
-
PM2-20-2R64R6-23-15-SFF
Active		Active2.64.626 dB Typ5 dB Max23 dBm Min
-
PE2-18-218-15-SFM
Active		Active21815 dB Typ4.5 dB Max15 dBm Min
-
PM2-30-118-23-15-SFF
Active		Active11830 dB Typ5 dB Max22 dBm Min
-
SC00066-06 Rev. C
Active		Active0.120.2519.5 dB Min,
23.5 dB Max		6 dB Max (0.1 to 19 GHz),
6.5 dB Max (19 to 20.25 GHz)		14 dBm Min
-
PE2-20-30M2G-6R0-10-15-SFF
Active		Active0.03226 dB Typ6 dB Max10 dBm Min
-
PE2-20-0R38-15-SFF
Active		Active0.3820 dB Min6.5 dB Max8 dBm Min
-
PEC-42-1G40G-20-12-292FF-BT
Active		Active14040 dB Typ5.5 dB Typ19 dBm Typ (1 to 18 GHz),
17 dBm Typ (18 to 40 GHz)		23 dBm Typ (1 to 18 GHz),
20 dBm Typ (18 to 40 GHz)
PE2-28-1R018R0-5R0-12-12-SFF
Active		Active11828 dB Typ5.5 dB Max15 dBm Min
-
PE2-40-218-15-SFF
Active		Active21840 dB Typ4.5 dB Max10 dBm Min
-
PEC-20-218-16-15-SFM-TTLVG
Active		Active21820 Min7 dB Max15 dBm Min, 16 dBm Typ
-
PE2-10-R218-15-T-SFF
Active		Active21810 dB Min6 dB Max10 dBm Min
-
PE2-10-R518-15-SFF
Active		Active0.51810 dB Min7.5 dB Max17 dBm Min
-
PE2-20-218-10-15-SFF
Active		Active21820 dB Min8 dB Max10 dBm Min
-
PE10-18-R502-15-T-SFF
Active		Active0.5218 dB Min3 dB Max14 dBm Min
-
PM2-32-818-23-12-SFF
Active		Active81836 dB Typ7 dB Max23 dBm Min
-
PE2-1020-R518-15-SFF
Active		Active0.51810 dB Typ (0.5 to 2 GHz),
14 dB Typ (2 to 4 GHz),
15 dB Typ (4 to 9 GHz),
17 dB Typ (9 to 18 GHz)		10 dB14 dBm Min
-
PE2-30-01R18G-4R0-10-15-SFM
Active		Active0.11830 dB Typ5.2 dB @ 0.1 GHz,
4.4 dB @ 0.5 GHz,
4 dB @ 2 GHz,
2.5 dB @ 10 GHz,
3.2 dB @ 18 GHz		10 dBm Min
-
PM2-10-1123-12-SFF
Active		Active112310 dB Typ8 dB Max22 dBm Min
-
PE2-22-218-20-12-SFF
Active		Active21822 dB Min4.5 dB Typ, 5.5 dB Max20 dB Min
-
PMI-20A4-618
Active		Active61818 dB Min @ Room Temperature6 dB Max13 dBm Min
-
PE2-20-218-7R0-16-12-SFF
Active		Active21820 dB Typ7 dB Max16 dBm Min
-
PE2-10-1123-12-SFF
Active		Active112310 dB Typ8 dB Max22 dBm Min
-
PE2-22-1123-12-SFF
Active		Active112321.5 dB Typ8 dB Max22 dBm Min
-
PE2-24-2R04R0-2R5-15-12-SFF
Active		Active2420 dB Min, 24 dB Typ2 dB Typ, 2.5 dB Max15 dBm Min
-
PEC-25-0R518R0-5R0-5-15-SFF
Preliminary		Preliminary0.51820 dB Min,
30 dB Max		5 dB Max (0.5 to 1 GHz),
4.5 dB Max (1 to 18 GHz)		5 dBm Min
-
PM2-35-110-21-15-SFF
Active		Active11035 dB Typ4 dB Max21 dBm Min
-
PE2-30-2R04R0-1R6-15-12-SFF
Active		Active2430 dB Typ1.4 dB Typ, 1.6 dB Max15 dBm Min
-
PE2-8R012R0-3R0-21-12-SFF
Active		Active81215 dB Typ3 dB Typ21 dBm Typ
-
PM2-25-110-21-15-SFF
Active		Active11026 dB Typ4 dB Max21 dBm Min
-
PE2-23-2R018R0-4R5-22-12-SFF
Active		Active21823 dB Min4.5 dB Typ, 5 dB Max21 dBm Min
-
PE2-35-120-5R0-10-15-SFF-ROHS
Active		Active12035 dB Typ5 dB Max10 dBm Min
-
PM2-26-119-21-15-SFF
Active		Active11927 dB Typ3 dB Typ,
4.5 dB Max		21 dBm Min
-
PE2-22-120-5R0-10-15-SFF-ROHS
Active		Active12022 dB Typ5 dB Max10 dBm Min
-
PE2-30-2040-5R0-10-15-292FF-ROHS
Active		Active204030 dB Typ5 dB Typ10 dBm Min
-
PE2-30-610-1R2-15-SFF
Active		Active61030 dB Typ1.2 dB Max2 dBm Min
-
PEC-42-1G40G-20-12-292FF-ROHS
Active		Active14042 dB Typ5.5 dB (Up to 20 GHz) Typ22 dBm Typ (1 to 18 GHz),
19 dBm Typ (18 to 40 GHz)
-
LNA-0D1G20D0G-10-4D5-15D0-2D5-292FF
Active		Active0.12010 dB Min4.5 dB Typ15 dBm Min
-
LNA-0D1G6D0G-18-1D2-8D0-15-SFF
Active		Active0.1618 dB Min1.8 dB Max8 dBm Min
-
PE2-40-0R218-5R0-12-SFF-TC
Active		Active0.21838 to 43 dB5 dB Max12 dBm Min
-
GTSC-22-2M18G-8R0-13-SFF-EQM
Active		Active0.00218Cable Correction Curve
-
10 dBm Min (@ 18 GHz)
-
PM2-0R0118-15-10-SFF
Active		Active0.0021813 to 18 dB9 dB Max (0.01 to 0.5 GHz),
7.5 dBm Max (0.5 to 18 GHz)		16 dBm Min
-
GTSC-27-2M18G-8R0-13-SFF-EQH
Active		Active0.00218Cable Correction Curve
-
10 dBm Min (@ 18 GHz)
-
PE2-30-2R56-10-15-SFF-VG
Active		Active2.5630 dB Typ8.5 dB Max10 dBm Min
-
PM2-16-118R5-23-15-SFF
Active		Active118.516 dB Typ8.5 dB Max22 dBm Min
-
GTSC-18-2M18G-6R0-13-SFF-EQL
Active		Active0.00218Cable Correction Curve
-
10 dBm Min (@ 18 GHz)
-
PE2-16-14-23-15-SFF
Active		Active1416 dB Typ5 dB Max22 dBm Min
-
PE2-33-48-2R0-12-12-SFF
Active		Active4834 dB Typ2 dB Max10 dBm Min
-
PE2-30-0R13-20-15-SFF
Active		Active0.1330 dB Typ3.5 dB Max20 dBm Min
-
PE2-30-1016-15-SFF
Active		Active101633 dB Typ2.5 dB Max5 dBm Min
-
PEC-20-618-14-15-SFF
Active		Active61819 dB Min, 22 dB Max9 dB Max14 dBm Min
-
PEC-38-818-10-15-SFF
Active		Active81838 ± 2.5 dB8 dB Max10 dBm Min
-
PM2-25-11R618R0-25-12-SFF
Active		Active11.61829 dB Typ5 dB Max25 dBm Min
-
PM2-25-7R513R0-25-12-SFF
Active		Active7.51326 dB Typ4 dB Max25 dBm Min
-
PE2-25-812-15-SFF
Active		Active81227 dB Typ2 dB Max27 dBm Min
-
PE2-30-48-3R0-10-15-SFF
Active		Active4834 dB Typ2.5 dB Max12 dBm Min
-
PHC-20-26-26DBM-15-SFF
Active		Active2618 dB Min,
22 dB Max		7.5 dB Max26 dBm Min
-
PEC-25/15-618-15-SFF
Active		Active61823 to 27 dB (J1-J2),
13 to 17 dB (J1-J3)		10 dB Max13 dBm Min
-
PM2-28-12-2R5-22-15-SFF
Active		Active1228 dB Typ2.5 dB Max21 dBm Min
-
PE2-30-24R526R5-8R0-24-12-SFF
Active		Active24.526.538 dB Typ8 dB Max24 dBm Min
-
PM2-25-1R84R2-25-12-SFF
Active		Active1.84.227 dB Typ5.5 dB Max25 dBm Min
-
PM2-814-17-15-SFF
Active		Active81417 dB Typ7 dB Max20 dBm Min
-
PE2-28-1113-7R0-25-12-SFF
Active		Active10.712.7530 dB Typ7 dB Max24 dBm Min
-
PE2-30-3R58R5-1R5-10-12-SFF
Active		Active3.58.532 dB Typ
30 dB Min		2.5 dB Max14 dBm Min
-
PE2-32-218-3R5-8-15-SFF
Active		Active21832 dB Min3.5 dB Max8 dBm Min
-
PM2-25-3R78R4-25-12-SFF
Active		Active3.78.425 dB Typ5.5 dB Max25 dBm Min
-
PE2-24-1R18R2-23-15-SFF
Active		Active11826 dB Typ5 dB Max21 dBm Min
-
PE2-NC-15-0R2518R0-5R0-22-12-SFF
Active		Active0.251815 dB Typ5 dB Typ20 dB Min, 22 dB Typ
-
PE2-38-510-1R3-5-15-SFF
Active		Active51038 dB Typ1.3 dB Max5 dBm Min
-
PE2-29-0R2518R0-22-12-SFF
Active		Active0.251829 dB Typ5 dB Typ20 dBm Min
-
PM2-33-218-20-28-SFF
Active		Active21833 dB Min4 dB Typ, 5 dB Max20 dBm Min
-
PEAFS3-14-0R2535R0-6R5-23-12-292FF
Active		Active0.253514 dB Typ6.5 dB23 dBm Min28 dBm
PEAFS3-13-618-6R5-23-12-SFF
Active		Active61813 dB Typ4 dB Typ,
5 dB Max		23 dBm Min28 dBm Typ
PE2-28-812-1R75-10-12-SFF
Active		Active81228 dB Typ1.75 dB Max10 dBm Min
-
PE2-28-7R5G9R5G-2R5-10-12-SFF
Active		Active7.59.528 dB Typ3 dB Max10 dBm Min
-
PE2-15-6G8D8G-2R2-14-12-SFF
Active		Active68.815 dB Typ2.2 dB Max14 dBm Min
-
PE2-24-220-15-SFF
Active		Active22027 dB Typ5 dB Max20 dBm Min
-
PE2-26-6G8D8G-2R2-14-12-SFF
Active		Active68.826 dB Typ2.2 dB Max10 dBm Min
-
PE2-28-6G9G-3R0-10-12-SFF
Active		Active6928 dB Typ3 dB Max10 dBm Min
-
PE2-28-812-1R0-2-12-SFF
Active		Active81228 dB Typ1 dB Max0 dBm Min
-
PEC-15-2M18G-7R0-13-15-SFF
Active		Active0.0021813.5 to 17.5 dB Typ10 dB Typ (0.01 to 0.1 GHz),
7 dB Typ (0.1 to 15 GHz)		13 dBm Typ
-
PE2-26-20G24G-2R5-10-12-SFF
Active		Active20.423.226 dB Typ2.5 dB Max10 dBm Min
-
PE2-15-10R020R0-4R5-20-12-SFF
Active		Active102015 dB Typ4.5 dB Max20 dBm Min
-
PLNA-100M300M-23-SFF
Active		Active0.10.323 dB Typ2.2 dB Typ10.7 dBm Typ
-
PEC-26-218-5-24-12-SFF-NSI
Preliminary		Preliminary21824 dB Min,
26 dB Typ		3 dB Typ,
5.5 dB Max		22 dBm Min,
24 dBm Typ
-
PEC-50-500M40G-20-12-292FF-BG
Active		Active0.54050 dB Typ5.5 dB Typ (Up to 26.5 GHz)22 dBm Min (1 to 18 GHz),
18 dBm Min (18 to 40 GHz)		23 dBm Typ (1 to 18 GHz),
20 dBm Typ (18 to 40 GHz)
PEC-50-500M40G-20-12-292FF-BG-OPT250M
Active		Active0.254047 dB Nom5.5 dB Typ, 7 dB Max21 dBm Min (0.25 to 10 GHz),
19 dBm Min (10 to 18 GHz),
16 dBm Min (18 to 40 GHz)		27 dBm Max
PEC-30-0R118-5R0-20-12-SFF
Preliminary		Preliminary0.11825 dB Min, 32 dB Max5 dB Max (1 to 18 GHz),
6 dB Max (0.5 to 1 GHz),
8 dB Max (0.1 to 0.5 GHz)		22 dBm Min
-
PEC-23-11G13G-4R5-27-15-SFF
Preliminary		Preliminary111320 dB Min,
25 dB Max		4.5 dB Typ,
5 dB Max		26.5 dBm Min
-
PE2-40-2G2R5G-1R0-15-12-SFF
Active		Active22.548 dB Typ1.25 dB Max15 dBm Min
-
PE2-10-2R12R5-10-15-SFF
Active		Active2.1752.4810 dB Typ10 dB Max10 dBm Min
-
PE2-30-818-3R8-20-12-SFF
Active		Active81833 dB Typ3.8 dB Max20 dBm Min
-
LNA-38-12R5-SFF
Preliminary		Preliminary12.535 dB Min, 38 dB Typ, 41 dB Max1 dB Typ, 1.2 dB Max24 dBm Min, 25 dBm Typ
-
PE2-35-8G12G-2R5-15-12-SFF
Active		Active81230 dB Min2.5 dB Max15 dBm Min
-
PE2-35-8G12G-2R5-15-12-SFF-DCSMA
Preliminary		Preliminary81230 dB Min2.5 dB Max15 dBm Min
-
PLNA-30-9G11G-2-15-12-SFF-HERM
Preliminary		Preliminary91130 dB Min2 dB Max15 dBm Min
-
LNA-40-0R52-4R5-SFF
Preliminary		Preliminary0.5240 dB Min, 44 dB Max4.5 dB23 dBm
-
LNA-27-0R51R5-6-SFF
Preliminary		Preliminary0.51.527 dB Min, 32 dB Max6 dB30 dBm
-
LNA-32-26-5-SFF
Preliminary		Preliminary2632 dB Min, 37 dB Max5 dB23 dBm
-
LNA-47-0R52-4-SFF
Active		Active0.5247 dB Min, 53 dB Max4 dB20 dBm
-
LNA-20-17-5-SFF
Active		Active1720 dB Min, 26 dB Max5 dB22 dBm
-
LNA-46-17-5-SFF
Active		Active1746 dB Min, 54 dB Max5 dB23 dBm
-
LNA-33-0R18-NFF
Preliminary		Preliminary0.1830 dB Min, 33 dB Typ, 36 dB Max (Above 0.1 GHz)2.5 dB Max (Above 0.3 GHz)20 dBm Min
-
LNA-40-0R18-NFF
Preliminary		Preliminary0.1838 dB Min, 40 dB Typ, 44 dB Max (Above 0.1 GHz)2.5 dB Max (Above 0.3 GHz)20 dBm Min
-
PE2WR112-40-88R5-12-SFF
Active		Active58.540 dB Typ1.27 dB Max10 dBm Min
-
PE2-28-2G4G-2R0-10-12-SFF
Active		Active2428 dB Min2 dB Max10 dBm Min
-
PE2-20-118-5R0-10-15-SFF
Active		Active11820 dB Min, 26 dB Typ5 dB Max10 dBm Min
-
PEC-12-50M40G-4R0-15-292FF
Active		Active0.054010 dB Min8.5 dB Max (0.05 to 0.5 GHz),
5.5 dB Max (0.5 to 31 GHz),
8.5 dB Max (31 to 40 GHz)		13 dBm Min
-
PEC-40-0R5G18G-20-15-SFF
Preliminary		Preliminary0.51840 dB Typ, 35 dB Min4.5 dB Max @ 25 °C15 dBm Min
-
PEC-37-2G4G-10-15-SFF
Preliminary		Preliminary2437 ± 2 dB Max10 dB Max23 dBm Min
-
PE2-16-2R06R0-1R8-12-12-SFF
Active		Active2616 dB Typ2 dB Max10 dBm Min
-
PE2-30-6R018R0-3R5-22-12-SFF
Active		Active61830 dB Typ5 dB Max18.5 dBm Min
-
LNA-40-0R4G6G-12-SFF
Preliminary		Preliminary0.4640.5 dB Typ @ 0.4 GHz,
40 dB Typ @ 3 GHz,
42.5 dB Typ @ 6 GHz		2 dB Typ, 2.5 dB Max20 dBm Typ
-
LNA-40-10M8G-12-SFF
Preliminary		Preliminary0.01842 dB Typ @ 0.01 GHz,
41 dB Typ @ 4 GHz,
40 dB Typ @ 8 GHz		2 dB Typ, 2.5 dB Max20 dBm Typ
-
PE2-12-2G8G-7-7-12-SFF
Preliminary		Preliminary2812 ± 3 dB7 dB Max7 dBm Min
-
PEC3-9-7G18G-9-7-SFF
Preliminary		Preliminary7189 ± 3 dB9 dB Max7 dBm Min
-
PEC-28-9D4G15D1G-5R0-24-12-SFF
Preliminary		Preliminary9.415.116 dB Min, 28 dB Max5.5 dB Max24 dBm Min @ 8 dBm Input Power
-
LNA-30-10G18G-3R0-25
Preliminary		Preliminary101830 ± 1.5 dB @ 25 °C,
30 ± 2 dB Over Temperature		3 dB Max @ 25 °C,
5 dB Over Temperature		25 dBm Min
-
PEC-20-200M6G-3R0-25-SFF
Active		Active0.2620 dB Nom6 dB Typ @ 0.2 GHz,
4.5 dB Typ @ 0.5 GHz,
3.5 dB Typ @ 2 GHz,
4 dB @ 6 GHz		25 dBm Min
-
PE2-19-6G18G-1R6-16-12-SFF
Active		Active61819 dB Typ,
17 dB Min		2 dB Typ, 2.5 dB Max15 dBm Typ, 13 dBm Min
-
PE2-15-0R254R0-4R5-15-12-SFF
Preliminary		Preliminary0.25415 dB Typ4.5 dB Typ15 dBm Min
-
PE2-15-0R254R0-5R5-22-12-SFF
Preliminary		Preliminary0.25415 dB Typ5.5 dB Typ22 dBm Min
-
PE2-15-0R258R0-4R5-15-12-SFF
Preliminary		Preliminary0.25815 dB Typ4.5 dB Typ15 dBm Min
-
PE2-15-0R52R0-4R5-15-12-SFF
Preliminary		Preliminary0.5215 dB Typ4.5 dB Typ15 dBm Min
-
PE2-15-0R52R0-5R5-22-12-SFF
Preliminary		Preliminary0.5215 dB Typ5.5 dB Typ22 dBm Min
-
PE2-15-0R54R0-5R5-22-12-SFF
Preliminary		Preliminary0.5415 dB Typ5.5 dB Typ22 dBm Min
-
PE2-15-0R58R0-5R5-22-12-SFF
Preliminary		Preliminary0.5815 dB Typ5.5 dB Typ20 dBm Min, 21 dBm Typ
-
PE2-15-1R018R0-4R5-15-12-SFF
Preliminary		Preliminary11815 dB Typ4.5 dB Typ15 dBm Min
-
PE2-15-1R04R0-4R5-15-12-SFF
Preliminary		Preliminary1415 dB Typ4.5 dB Typ15 dBm Min
-
PE2-15-1R04R0-4R5-22-12-SFF
Preliminary		Preliminary1415 dB Typ4.5 dB Typ22 dBm Min
-
PE2-15-1R06R0-4R5-15-12-SFF
Preliminary		Preliminary1615 dB Typ4.5 dB Typ15 dBm Min
-
PE2-15-2R012R0-4R0-15-12-SFF
Preliminary		Preliminary21215 dB Typ4 dB Typ15 dBm Min
-
PE2-15-2R020R0-5R0-15-12-SFF
Preliminary		Preliminary22015 dB Typ5 dB Typ15 dBm Min
-
PE2-15-2R06R0-4R0-15-12-SFF
Preliminary		Preliminary2615 dB Typ4 dB Typ15 dBm Min
-
PE2-15-2R06R0-4R0-22-12-SFF
Preliminary		Preliminary2615 dB Typ4 dB Typ22 dBm Min
-
PE2-15-2R08R0-4R0-15-12-SFF
Preliminary		Preliminary2815 dB Typ4 dB Typ15 dBm Min
-
PE2-15-2R08R0-4R0-22-12-SFF
Preliminary		Preliminary2815 dB Typ4 dB Typ22 dBm Min
-
PE2-15-8R018R0-3R5-22-12-SFF
Preliminary		Preliminary81815 dB Typ3.5 dB Typ20 dBm Min
-
PE2-16-2R010R0-2R0-10-12-SFF
Preliminary		Preliminary21016 dB Typ2 dB Typ10 dBm Min
-
PE2-17-1R06R0-1R4-14-12-SFF
Preliminary		Preliminary1617 dB Typ1.4 dB Typ12 dBm Min
-
PE2-18-1R04R0-1R4-14-12-SFF
Preliminary		Preliminary1418 dB Typ1.5 dB Typ15 dBm Typ
-
PE2-30-0R252R0-4R5-15-12-SFF
Preliminary		Preliminary0.25230 dB Typ4.5 dB Typ15 dBm Min
-
PE2-30-0R252R0-5R0-22-12-SFF
Preliminary		Preliminary0.25230 dB Typ5 dB Typ22 dBm Min
-
PE2-30-0R254R0-5R0-22-12-SFF
Preliminary		Preliminary0.25430 dB Typ5 dB Typ22 dBm Min
-
PE2-30-0R258R0-4R5-15-12-SFF
Preliminary		Preliminary0.25830 dB Typ4.5 dB Typ15 dBm Min
-
PE2-30-0R52R0-5R0-22-12-SFF
Preliminary		Preliminary0.5230 dB Typ5 dB Typ22 dBm Min
-
PE2-30-0R56R0-4R5-15-12-SFF
Preliminary		Preliminary0.5630 dB Typ4.5 dB Typ15 dBm Min
-
PE2-30-0R58R0-5R0-22-12-SFF
Preliminary		Preliminary0.5830 dB Typ5 dB Typ22 dBm Min
-
PE2-30-1R04R0-4R5-15-12-SFF
Preliminary		Preliminary1430 dB Typ4.5 dB Typ15 dBm Min
-
PE2-30-1R04R0-4R5-22-12-SFF
Preliminary		Preliminary1430 dB Typ4.5 dB Typ22 dBm Min
-
PE2-30-1R06R0-4R5-15-12-SFF
Preliminary		Preliminary1630 dB Typ4.5 dB Typ15 dBm Min
-
PE2-30-1R06R0-4R5-22-12-SFF
Preliminary		Preliminary1630 dB Typ4.5 dB Typ22 dBm Min
-
PE2-30-1R2G9R7G-5R0-18-12-SFF
Preliminary		Preliminary1.29.725 dB Min5 dB Typ, 6 dB Max18 dBm Min
-
PE2-30-2R010R0-4R0-15-12-SFF
Preliminary		Preliminary21030 dB Typ4 dB Typ15 dBm Min
-
PE2-30-2R012R0-4R0-15-12-SFF
Preliminary		Preliminary21230 dB Typ4 dB Typ15 dBm Min
-
PE2-30-2R012R0-4R0-22-12-SFF
Preliminary		Preliminary21230 dB Typ4 dB Typ22 dBm Min
-
PE2-30-2R06R0-4R0-22-12-SFF
Preliminary		Preliminary2630 dB Typ4 dB Typ22 dBm Min
-
PE2-30-2R08R0-4R0-15-12-SFF
Preliminary		Preliminary2830 dB Typ4 dB Typ15 dBm Min
-
PE2-30-5G13G-2R2-17-12-SFF
Preliminary		Preliminary51330 dB Typ2.2 dB Typ, 2.5 dB Max17 dBm Min
-
PE2-30-8R018R0-3R0-14-12-SFF
Preliminary		Preliminary81830 dB Typ3 dB Typ14 dBm Min
-
PE2-40-3G18G-3R0-10-15-SFF
Preliminary		Preliminary31840 dB Min3 dB Max10 dBm Min
-
PE2-40-3G18G-3R0-10-15-SMF
Preliminary		Preliminary31840 dB Min3 dB Max10 dBm Min
-
PE2-45-0R2510R0-5R0-22-12-SFF
Preliminary		Preliminary0.251045 dB Typ5 dB Typ22 dBm Min
-
PE2-45-0R2518R0-5R0-15-12-SFF
Preliminary		Preliminary0.251845 dB Typ5 dB Typ15 dBm Min
-
PE2-45-0R2518R0-5R0-22-12-SFF
Preliminary		Preliminary0.251845 dB Typ5 dB Typ22 dBm Min
-
PE2-45-0R252R0-4R5-15-12-SFF
Preliminary		Preliminary0.25245 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-0R254R0-5R0-22-12-SFF
Preliminary		Preliminary0.25445 dB Typ5 dB Typ22 dBm Min
-
PE2-45-0R258R0-5R0-22-12-SFF
Preliminary		Preliminary0.25845 dB Typ5 dB Typ22 dBm Min
-
PE2-45-0R52R0-4R5-15-12-SFF
Preliminary		Preliminary0.5245 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-0R54R0-4R5-15-12-SFF
Preliminary		Preliminary0.5445 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-0R54R0-5R0-22-12-SFF
Preliminary		Preliminary0.5445 dB Typ5 dB Typ22 dBm Min
-
PE2-45-0R56R0-4R5-15-12-SFF
Preliminary		Preliminary0.5645 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-0R58R0-4R5-15-12-SFF
Preliminary		Preliminary0.5845 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-1R04R0-4R5-15-12-SFF
Preliminary		Preliminary1445 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-1R04R0-4R5-22-12-SFF
Preliminary		Preliminary1445 dB Typ5 dB Typ22 dBm Min
-
PE2-45-1R06R0-4R5-15-12-SFF
Preliminary		Preliminary1645 dB Typ4.5 dB Typ13 dBm Min
-
PE2-45-1R06R0-4R5-22-12-SFF
Preliminary		Preliminary1645 dB Typ5 dB Typ22 dBm Min
-
PE2-45-1R08R0-4R5-15-12-SFF
Preliminary		Preliminary1845 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-2R010R0-4R0-15-12-SFF
Preliminary		Preliminary21045 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-2R020R0-5R0-15-12-SFF
Preliminary		Preliminary22045 dB Typ5 dB Typ15 dBm Min
-
PE2-45-2R06R0-4R0-15-12-SFF
Preliminary		Preliminary2645 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-2R06R0-4R0-22-12-SFF
Preliminary		Preliminary2645 dB Typ4 dB Typ22 dBm Min
-
PE2-60-0R2510R0-4R75-15-12-SFF
Preliminary		Preliminary0.251060 dB Typ4.75 dB Typ15 dBm Min
-
PE2-60-0R254R0-4R75-15-12-SFF
Preliminary		Preliminary0.25460 dB Typ4.75 dB Typ15 dBm Min
-
PE2-60-0R258R0-4R75-15-12-SFF
Preliminary		Preliminary0.25860 dB Typ4.75 dB Typ15 dBm Min
-
PE2-60-0R258R0-5R0-22-12-SFF
Preliminary		Preliminary0.25860 dB Typ5 dB Typ22 dBm Min
-
PE2-60-0R54R0-4R75-15-12-SFF
Preliminary		Preliminary0.5460 dB Typ4.75 dB Typ15 dBm Min
-
PE2-60-0R54R0-5R0-22-12-SFF
Preliminary		Preliminary0.5460 dB Typ5 dB Typ22 dBm Min
-
PE2-60-0R56R0-4R75-15-12-SFF
Preliminary		Preliminary0.5660 dB Typ4.75 dB Typ15 dBm Min
-
PE2-60-0R58R0-4R75-15-12-SFF
Preliminary		Preliminary0.5860 dB Typ4.75 dB Typ15 dBm Min
-
PE2-60-0R58R0-5R0-22-12-SFF
Preliminary		Preliminary0.5860 dB Typ5 dB Typ22 dBm Min
-
PE2-60-1R04R0-4R5-15-12-SFF
Preliminary		Preliminary1460 dB Typ4.5 dB Typ15 dBm Min
-
PE2-60-2R012R0-4R0-15-12-SFF
Preliminary		Preliminary21260 dB Typ4 dB Typ15 dBm Min
-
PE2-60-2R012R0-4R0-22-12-SFF
Preliminary		Preliminary21260 dB Typ4 dB Typ22 dBm Min
-
PE2-60-2R018R0-4R5-22-12-SFF
Preliminary		Preliminary21860 dB Typ4.5 dB Typ22 dBm Min
-
PE2-60-2R020R0-5R0-15-12-SFF
Preliminary		Preliminary22060 dB Typ5 dB Typ15 dBm Min
-
PE2-60-2R06R0-4R0-15-12-SFF
Preliminary		Preliminary2660 dB Typ4 dB Typ15 dBm Min
-
PE2-60-2R06R0-4R0-22-12-SFF
Preliminary		Preliminary2660 dB Typ4 dB Typ22 dBm Min
-
PE2-60-2R08R0-4R0-22-12-SFF
Preliminary		Preliminary2860 dB Typ4 dB Typ22 dBm Min
-
PE2-60-8R018R0-3R0-14-12-SFF
Preliminary		Preliminary81860 dB Typ3 dB Typ14 dBm Min
-
PE2-60-8R018R0-3R5-22-12-SFF
Preliminary		Preliminary81860 dB Typ3.5 dB Typ22 dBm Min
-
PEC-30-500M40G-20-12-292FF-OPT1G18G
Preliminary		Preliminary11830 dB Typ5.5 dB Typ (Up to 26.5 GHz)19 dBm Typ23 dBm Typ
AMP-218-13-16-12-SFF
Active		Active21813 ± 2 dB4 to 5 dB16 dBm Min
-
AMP-2G18G-37-33
Preliminary		Preliminary21837 dB Mom
-
33 dBm Min
-
LNA-0D4G6D0G-35-10D0-15-SFF
Preliminary		Preliminary0.4635 dB Min2.4 dB Max10 dBm Min
-
LNA-11D8G18D2G-28-13-15-SFF
Preliminary		Preliminary11.818.228 dB Min,
32 dB Max		5 dB Max13 dBm Min
-
LNA-2D0G8D0G-27D0-1D2-11-SFF
Preliminary		Preliminary2824 dB Min,
30 dB Max		1.2 dB Max10 dBm Min
-
LNA-3D8G8D2G-26-13-15-SFF
Preliminary		Preliminary3.88.230 dB4 dB Max13 dBm Min
-
LNA-7D8G12D2G-28-15-15-SFF
Preliminary		Preliminary7.812.221 dB Min, 23 dB Max4 dB Max15 dBm Min
-
PE2-12-0R52-5R5-20-12-SFF
Active		Active0.5217 dB Typ5.5 dB Typ20 dBm Min
-
PE2-15-0R2510R0-4R5-15-12-SFF
Preliminary		Preliminary0.251015 dB Typ4.5 dB Typ15 dBm Min
-
PE2-15-0R2510R0-5R5-22-12-SFF
Preliminary		Preliminary0.251015 dB Typ5.5 dB Typ22 dBm Min
-
PE2-15-0R252R0-4R5-15-12-SFF
Preliminary		Preliminary0.25215 dB Typ4.5 dB Typ13 dBm Min,
15 dBm Typ
-
PE2-15-0R252R0-5R5-22-12-SFF
Preliminary		Preliminary0.25215 dB Typ5.5 dB Typ22 dBm Min
-
PE2-15-0R258R0-5R5-22-12-SFF
Preliminary		Preliminary0.25815 dB Typ5.5 dB Typ22 dBm Min
-
PE2-15-0R54R0-4R5-15-12-SFF
Preliminary		Preliminary0.5415 dB Typ4.5 dB Typ15 dBm Min
-
PE2-15-0R56R0-4R5-15-12-SFF
Preliminary		Preliminary0.5615 dB Typ4.5 dB Typ13 dBm Min
-
PE2-15-0R56R0-5R5-22-12-SFF
Preliminary		Preliminary0.5615 dB Typ5.5 dB Typ22 dBm Min
-
PE2-15-0R58R0-4R5-15-12-SFF
Preliminary		Preliminary0.5815 dB Typ4.5 dB Typ13 dBm Min
-
PE2-15-12R018R0-3R5-20-12-SFF
Preliminary		Preliminary121815 dB Typ3.5 dB Typ18 dBm Min
-
PE2-15-1R06R0-4R5-22-12-SFF
Preliminary		Preliminary1615 dB Typ4.5 dB Typ22 dBm Min
-
PE2-15-1R08R0-4R5-15-12-SFF
Preliminary		Preliminary1815 dB Typ4.5 dB Typ15 dBm Min
-
PE2-15-2R010R0-4R0-15-12-SFF
Preliminary		Preliminary21015 dB Typ4 dB Typ15 dBm Min
-
PE2-15-2R010R0-4R0-22-12-SFF
Preliminary		Preliminary21015 dB Typ4 dB Typ22 dBm Min
-
PE2-15-2R020R0-5R0-22-12-SFF
Preliminary		Preliminary22015 dB Typ5 dB Typ22 dBm Typ,
19 dBm Min
-
PE2-15-8R018R0-3R0-14-12-SFF
Preliminary		Preliminary81813 dB Typ3 dB Typ12 dBm Min
-
PE2-16-1R08R0-1R8-12-12-SFF
Preliminary		Preliminary1816 dB Typ1.8 dB Typ12 dBm Min
-
PE2-17-2R06R0-1R4-14-12-SFF
Preliminary		Preliminary2617 dB Typ1.4 dB Typ14 dBm Min
-
PE2-25-6R418-4R0-13LM-9-SFF
Preliminary		Preliminary6.41826 dB Typ5.75 dB Max
-
13 dBm Typ
PE2-30-0R2510R0-4R5-15-12-SFF
Preliminary		Preliminary0.251030 dB Typ4.5 dB Typ15 dBm Min
-
PE2-30-0R2510R0-5R0-22-12-SFF
Preliminary		Preliminary0.251030 dB Typ5 dB Typ22 dBm Min
-
PE2-30-0R2518R0-5R0-22-12-SFF
Preliminary		Preliminary0.251830 dB Typ5 dB Typ22 dBm Min
-
PE2-30-0R52R0-4R5-15-12-SFF
Preliminary		Preliminary0.5230 dB Typ4.5 dB Typ15 dBm Min
-
PE2-30-0R54R0-4R5-15-12-SFF
Preliminary		Preliminary0.5430 dB Typ4.5 dB Typ13 dBm Min
-
PE2-30-0R56R0-5R0-22-12-SFF
Active		Active0.5630 dB Typ5 dB Typ22 dBm Typ, 21 dBm Min
-
PE2-30-0R58R0-4R5-15-12-SFF
Preliminary		Preliminary0.5830 dB Typ4.5 dB Typ15 dBm Min
-
PE2-30-1G18G-4R8-19-12-SFF-1W
Preliminary		Preliminary11830 dB Min4 dB Typ, 4.8 dB Max20 dBm Typ, 19 dBm Min
-
PE2-30-1R018R0-4R5-22-12-SFF
Active		Active22030 dB Typ4.5 dB Typ22 dBm Min
-
PE2-30-1R06R0-1R5-22-12-SFF
Active		Active1630 dB Typ1.8 dB Typ22 dBm Typ
-
PE2-30-1R08R0-2R0-22-12-SFF
Preliminary		Preliminary1830 dB Typ2 dB Typ22 dBm Typ,
20 dBm Min
-
PE2-30-1R08R0-4R5-15-12-SFF
Preliminary		Preliminary1830 dB Typ4.5 dB Typ15 dBm Min
-
PE2-30-2G18G-4R0-18-12-SFF
Preliminary		Preliminary21828 dB Min, 33 dB Max4 dB Typ, 5 dB Max18 dBm Typ, 15 dBm Min
-
PE2-30-2R010R0-2R25-22-12-SFF
Preliminary		Preliminary21030 dB Typ2.25 dB Typ20 dBm Min
-
PE2-30-2R010R0-4R0-22-12-SFF
Preliminary		Preliminary21030 dB Typ4 dB Typ22 dBm Min
-
PE2-30-2R018R0-4R5-22-12-SFF
Active		Active21830 dB Typ4.5 dB Typ22 dBm Min
-
PE2-30-2R020R0-5R0-15-12-SFF
Preliminary		Preliminary22030 dB Typ5 dB Typ15 dBm Min
-
PE2-30-2R06R0-4R0-15-12-SFF
Preliminary		Preliminary2630 dB Typ4 dB Typ15 dBm Min
-
PE2-30-2R08R0-2R0-22-12-SFF
Preliminary		Preliminary2830 dB Typ2 dB Typ22 dBm Min
-
PE2-30-2R08R0-4R0-22-12-SFF
Preliminary		Preliminary2830 dB Typ4 dB Typ22 dBm Min
-
PE2-45-0R252R0-5R0-22-12-SFF
Preliminary		Preliminary0.25245 dB Typ5 dB Typ22 dBm Min
-
PE2-45-0R254R0-4R5-15-12-SFF
Preliminary		Preliminary0.25445 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-0R52R0-5R0-22-12-SFF
Preliminary		Preliminary0.5245 dB Typ5 dB Typ22 dBm Min
-
PE2-45-0R58R0-5R0-22-12-SFF
Preliminary		Preliminary0.5845 dB Typ5 dB Typ22 dBm Min
-
PE2-45-1R08R0-4R5-22-12-SFF
Preliminary		Preliminary1845 dB Typ5 dB Typ22 dBm Min
-
PE2-45-2R012R0-4R0-22-12-SFF
Preliminary		Preliminary21245 dB Typ4 dB Typ22 dBm Min
-
PE2-45-2R018R0-4R5-22-12-SFF
Active		Active21845 dB Typ4.5 dB Typ20 dBm Min
-
PE2-45-2R020R0-5R0-22-12-SFF
Preliminary		Preliminary22045 dB Typ5 dB Typ22 dBm Min
-
PE2-45-2R08R0-4R0-15-12-SFF
Preliminary		Preliminary2845 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-8R018R0-3R0-14-12-SFF
Preliminary		Preliminary81845 dB Typ3 dB Typ14 dBm Min
-
PE2-45-8R018R0-3R5-22-12-SFF
Preliminary		Preliminary81845 dB Typ3.5 dB Typ20 dBm Min
-
PE2-60-0R252R0-4R75-15-12-SFF
Preliminary		Preliminary0.25260 dB Typ4.75 dB Typ15 dBm Min
-
PE2-60-0R52R0-4R75-15-12-SFF
Preliminary		Preliminary0.5260 dB Typ4.75 dB Typ15 dBm Min
-
PE2-60-1R04R0-4R5-22-12-SFF
Preliminary		Preliminary1460 dB Typ4.5 dB Typ22 dBm Min
-
PE2-60-1R06R0-4R5-15-12-SFF
Preliminary		Preliminary1660 dB Typ4.5 dB Typ15 dBm Min
-
PE2-60-1R06R0-4R5-22-12-SFF
Preliminary		Preliminary1660 dB Typ4.5 dB Typ22 dBm Min
-
PE2-60-1R08R0-4R5-15-12-SFF
Preliminary		Preliminary1860 dB Typ4.5 dB Typ15 dBm Min
-
PE2-60-2G8G-2R5-20-12-SFF
Active		Active2860 dB Nom2.5 dB Max20 dBm Min
-
PE2-60-2R010R0-4R0-15-12-SFF
Preliminary		Preliminary21060 dB Typ4 dB Typ15 dBm Min
-
PE2-60-2R010R0-4R0-22-12-SFF
Preliminary		Preliminary21060 dB Typ4 dB Typ22 dBm Min
-
PEC-30-7D5G18G-4R0-20-12-SFF
Preliminary		Preliminary7.51829 to 32 dB Typ4 dB Max20 dBm Min
-
LNA-0D1G6D0G-9-33-28-SFF
Preliminary		Preliminary0.166 dB Min, 9 dB Max
-
33 dBm Min
-
LNA-0D1G8D0G-20-1D5-10D0-15-SFF
Preliminary		Preliminary0.1820 dB Min1.5 dB Max10 dBm Min
-
PE210R258R515SFFLM-OPT28
Preliminary		Preliminary2820 dB Min,
23 dB Max		5 dB Min,
5.5 dB Max
-
-
PE2-15-2M18G-5R5-16-12-SFF
Preliminary		Preliminary0.0021815 dB Typ5.5 dB Typ16 dBm Min
-
PE2-15-2R018R0-4R5-15-12-SFF
Active		Active21815 dB Typ4.5 dB Typ15 dBm Typ
-
PE2-15-4G18G-4R0-24-12-SFF-HIP
Preliminary		Preliminary41814 dB Typ4 dB Typ24 dBm Min
-
PE2-16-2R012R0-2R5-10-12-SFF
Active		Active21216 dB Typ2.5 dB Typ10 dBm Min
-
PE2-16-2R08R0-1R8-12-12-SFF
Active		Active2816 dB Typ1.8 dB Typ12 dBm Min
-
PE2-23-500M18G-4R0-12-SFF-TC
Preliminary		Preliminary0.51823 dB Min4 dB Max (2 to 18 GHz),
4.5 dB Max. (0.5 to 2 GHz)		10 dBm Min,
14 dBm Typ
-
PE2-26-2G18G-6R0-20-12-SFF
Preliminary		Preliminary21830 dB Max6 dB20 dBm Min
-
PE2-30-12G18G-2R5-12-12-SFF
Active		Active121830 dB Min2.3 dB Typ,
2.5 dB Max		12 dBm Min
-
PE2-30-2R020R0-5R0-22-12-SFF
Active		Active22030 dB Typ5 dB Typ20 dBm Min
-
PE2-30-6G18G-3R0-15-15-SFF
Preliminary		Preliminary61828 dB Min, 32 dB Max3 dB Max15 dBm Min
-
PE2-42-5D6G18G-4R0-19-15-SFF
Preliminary		Preliminary5.61842 dB Min, 48 dB Max4 dB Typ19 dBm Min
-
PE2-45-0R2510R0-4R5-15-12-SFF
Preliminary		Preliminary0.251045 dB Typ4.5 dB Typ13 dBm Min
-
PE2-45-0R258R0-4R5-15-12-SFF
Preliminary		Preliminary0.25845 dB Typ4.5 dB Typ15 dBm Min
-
PE2-45-2G6G-1R8-12-SFF
Active		Active2645 dB Typ1.8 dB Max10 dBm Min
-
PE2-45-2R010R0-4R0-22-12-SFF
Preliminary		Preliminary21045 dB4 dB22 dBm Min
-
PE2-45-2R018G0-4R5-22-12-SFF-OPT2G20G
Preliminary		Preliminary22042 dB Nom4.5 dBm Max20 dBm Min (2 to 18 GHz),
19 dBm Typ (18 to 20 GHz)
-
PE2-45-2R08R0-4R0-22-12-SFF
Preliminary		Preliminary2845 dB Typ4 dB Typ22 dBm Min
-
PE2-60-0R2518R0-5R0-15-12-SFF
Preliminary		Preliminary0.251860 dB Typ5 dB Typ13 dBm Min
-
PE2-60-0R2518R0-5R0-22-12-SFF
Preliminary		Preliminary0.251860 dB Typ5 dB Typ22 dBm Min
-
PE2-60-0R252R0-5R0-22-12-SFF
Preliminary		Preliminary0.25260 dB Typ5 dB Typ22 dBm Min
-
PE2-60-0R254R0-5R0-22-12-SFF
Preliminary		Preliminary0.25460 dB Typ5 dB Typ22 dBm Min
-
PE2-60-0R52R0-5R0-22-12-SFF
Preliminary		Preliminary0.5260 dB Typ5 dB Typ22 dBm Min
-
PE2-60-0R56R0-5R0-22-12-SFF
Preliminary		Preliminary0.5660 dB Typ5 dB Typ22 dBm Min
-
PE2-60-1R018R0-4R5-15-12-SFF
Preliminary		Preliminary11860 dB Typ4.5 dB Typ13 dBm Min
-
PE2-60-2R020R0-5R0-22-12-SFF
Preliminary		Preliminary22060 dB Typ5 dB Typ20 dBm Min
-
PEC-13-20M6G-3R0-20-12-SFF
Active		Active0.02613 dB Typ4 dB Typ @ 0.02 GHz,
2 dB Typ @ 0.5 GHz,
2.5 dB Typ @ 2 GHz,
3.8 dB Typ @ 6 GHz		20 dBm Min
-
PEC-13-20M6G-3R0-20-12-SFF-EVAL
Active		Active0.02613 dB Typ3 dB Typ20 dBm Typ
-
PEC-14-127-8-12-SFF Rev B
Active		Active126.513 to 17 dB5.5 dB Max (1 to 20 GHz),
6 dB (20 to 26.5 GHz)
-
-
PEC-30-500M40G-20-12-292FF-OPT18G40G
Preliminary		Preliminary184030 dB Typ5.5 dB Typ17 dBm Typ20 dBm Typ
PEC-42-1G40G-20-12-292FF-OPT26R5G
Preliminary		Preliminary126.542 dB Typ5.5 dB Max20 dBm Typ (1 to 18 GHz),
18 dBm Typ (18 to 26.5 GHz)
-
PEC-7-2G18G-6R0-17-SFF-RISO70DB
Preliminary		Preliminary2187 dB Nom7.2 dB Typ17 dBm Min
-
PM2-34-218-15-SFF-1
Active		Active2.51832 to 36 dB4.7 dB Max16 dBm Min
-
LNA-0D1G6D0G-18-1D5-8D0-15-SFF
Preliminary		Preliminary0.1618 dB Min1.8 dB Max8 dBm Min
-
LNA-0D1G8D0G-40D0-2D5-15-SFF
Preliminary		Preliminary0.1840 dB Min2.5 dB Max10 dBm Min
-
LNA-100K-6G-24-18-TTL
Preliminary		Preliminary0.0001624 dB Nom5 dB Max
-
18 dBm Nom
PE2-12-30M40G-5R5-18-12-SFF
Preliminary		Preliminary0.034012 dB Typ5.5 dB Typ16 dBm Min
-
PE2-15-1R026R5-5R5-18-12-SFF
Active		Active126.513 dB Typ5.5 dB Typ18 dBm Min
-
PE2-22-0R52R0-1R5-18-12-SFF
Active		Active0.5222 dB Typ1.5 dB Typ18 dBm Min
-
PE2-27-100M40G-5R5-18-12-292FF
Preliminary		Preliminary0.14027 dB Typ5.5 dB Typ15 dBm Min
-
PE2-28-218-5R0-12-15-SFF
Active		Active21824 dB Min4.5 dB Max14 dBm Min
-
PE2-30-0R2518R0-5R0-15-12-SFF
Active		Active0.251830 dB Typ5 dB Typ15 dBm Min
-
PE2-30-218-4R0-20-12-SFF-BT
Active		Active21830 dB Typ4 dB Max20 dBm Min
-
PE2-30-2R012R0-2R5-22-12-SFF
Active		Active21230 dB Typ2.8 dB Max22 dBm Min
-
PE2-30-2R018R0-4R5-15-12-SFF
Active		Active21830 dB Typ4.5 dB Typ15 dBm Min
-
PE2-35-120-5R0-10-15-SFF
Preliminary		Preliminary12035 dB Min5 dB Max10 dBm Min
-
PE2-45-1R018R0-4R5-15-12-SFF-OPT120
Preliminary		Preliminary12042 dB Typ4.25 dB Typ,
5.5 dB Max		14 dBm Min15 dBm Min (@ 20 GHz)
PE2-55-3G12G-4-22-12-SFF
Preliminary		Preliminary31245 dB Min, 55 dB Max3 dB goal, 4 dB Max20 dBm Min
-
PE2-60-0R2510R0-5R0-22-12-SFF
Preliminary		Preliminary0.251060 dB Typ5 dB Typ20 dBm Min
-
PE2-60-2R08R0-4R0-15-12-SFF
Preliminary		Preliminary2860 dB Typ4 dB Typ15 dBm Min
-
PEC-14-127-8-12-SFF-1
Active		Active126.513 to 17 dB5.5 dB Max (1 to 20 GHz),
6 dB Max (20 to 26.5 GHz)
-
-
PEC-26-10G40G-20-12-292FF
Active		Active104026 dB Typ5.5 dB Max (up to 20 GHz)19 dBm Typ (10 to 18 GHz),
17 dBm Typ (18 to 40 GHz)
-
PEC-27-10M1G-1R6-25-12-SFF
Active		Active0.01130 dB Typ,
27 dB Min		1 dB Typ,
1.6 dB Max		26 dBm Typ,
25 dBm Max
-
PEC-36-2G18G-4R5-27-15-SFF-OPT812
Preliminary		Preliminary812.436 dB Typ4.5 dB Typ,
5 dB Max		26.5 dBm Min,
27.5 dBm Typ
-
PEC-42-1G40G-20-12-292MM
Active		Active14042 dB Typ5.5 dB Typ (Up to 26.5 GHz)19 dBm (1 to 18 GHz) Typ,
17 dBm (18 to 40 GHz) Typ		23 dBm (1 to 18 GHz) Typ,
20 dBm (18 to 40 GHz) Typ
LNA-30M6G-40-3R0-12-SFF
Preliminary		Preliminary0.03638 dB Typ4 dB Max18 dBm Typ
-
PE10-15-220-3R0-15-15-SFF
Active		Active22015 dB Typ3.5 dB Typ15 dBm Typ
-
PE2-15-1R018R0-4R5-22-12-SFF
Active		Active11815 dB Typ4.5 dB Typ20 dBm Typ
-
PE2-15-1R08R0-4R5-22-12-SFF
Preliminary		Preliminary1815 dB Typ4.5 dB Typ22 dBm
-
PE2-15-2R012R0-4R0-22-12-SFF
Active		Active21215 dB Typ4 dB Typ22 dBm Min
-
PE2-20-1015-20-15-SFF
Preliminary		Preliminary101520 dB Min3 dB Max16 dBm Min
-
PE2-20-818-4R0-15-12-SFF
Active		Active81820 dB Typ4 dB Typ12 dBm Min
-
PE2-28-1R026R5-5R5-18-12-SFF
Preliminary		Preliminary126.528 dB Typ5.5 dB Typ18 dBm Min
-
PE2-28-218-3R5-14-15-SFF
Active		Active21828 dB Typ3.5 dB Typ,
4 dB Max		14 dBm Min
-
PE2-30-0R2520R0-5R0-22-12-SFF
Active		Active0.252030 dB Typ5 dB Typ22 dBm Min
-
PE2-30-0R258R0-5R0-22-12-SFF
Preliminary		Preliminary0.25830 dB Typ5 dB Typ22 dBm Min
-
PE2-30-1R018R0-4R5-15-12-SFF
Active		Active11830 dB Typ4.5 dB Typ15 dBm Typ
-
PE2-30-1R018R0-4R5-22-12-SFF-1
Active		Active11830 dB Typ4.5 dB Typ22 dBm Min
-
PE2-30-2R06R0-1R5-22-12-SFF
Active		Active2630 dB Typ1.5 dB Typ22 dBm Min
-
PE2-60-2R018R0-4R5-15-12-SFF
Preliminary		Preliminary21860 dB Typ4.5 dB Typ15 dBm Typ, 13 dBm Min
-
PEC-20-100M20D25G-6R0-15-SFF
Active		Active0.120.2519.5 dB Min,
23.5 dB Max		6 dB Max (0.1 to 19 GHz),
6.5 dB Max (19 to 20.25 GHz)		14 dBm Min
-
PE2-15-0R2518R0-5R0-15-12-SFF
Preliminary		Preliminary0.251815 dB Typ5 dB Typ15 dBm Min
-
PE2150R258515SFF
Active		Active0.258.514.5 to 17.5 dB5 dB Max20 dB Min
-
PE2-15-2R018R0-4R5-22-12-SFF
Active		Active21815 dB Typ4.5 dB Typ22 dBm Min
-
PE2-35-218-5R0-12-15-SFF
Active		Active21832 dB Min4.5 dB Max14 dBm Min
-
PE2-40-1R018R0-4R5-22-12-SFF-1
Preliminary		Preliminary11830 dB Min,
40 dB Typ		4.5 dB Typ22 dBm Min
-
LNA-35-500M2D5G-0D6-25-12-SFF
Active		Active0.52.535 dB Typ0.6 dB Typ25 dBm Typ
-
PEAFS3-12-218-15-SFF-1
Active		Active21815 dB Min,
22 dB Max		5 dB Max9 dBm Min
-
PEC-38-30M18G-12-SFF
Active		Active0.031838 dB Typ5 dB Max12 dBm Min
-
PEC4-16-50M18G-4R0-19-15-SFF
Active		Active0.051814 dB Min,
19 dB Max		4 dB Typ19 dBm Min
-
LNA-32-0D3M90M-3D0-10-12-SFF
Active		Active0.00030.0932 dB Min3 dB Max10 dBm Min
-
PE210R258R515SFFLM Rev. B
Active		Active0.258.59 to 13 dB4.5 dB Max (Valid from 0.5 to 8.5 GHz)16 dB Min
-
PE2-40-100M18G-3R5-20-12-SFF
Active		Active0.11837 dB Min3.5 dB Typ (2 to 18 GHz),
7 dB Typ (@ 0.1 GHz)		20 dBm Min
-
PE2-55-4G8G-3R5-22-12-SFF
Preliminary		Preliminary4845 dB Min,
55 dB Max		3 dB goal,
3.5 dB Max		20 dBm Min
-
PE2-60-1R018R0-4R5-22-12-SFF
Active		Active11860 dB Typ4.5 dB Typ22 dBm Min
-
PEC-42-1G40G-20-12-292FF
Active		Active14042 dB Typ5.5 dB Typ (Up to 26.5 GHz)19 dBm (1 to 18 GHz) Typ,
17 dBm (18to 40 GHz) Typ
-
PEC-42-500M40G-20-12-292MM
Active		Active0.54042 dB Typ5.5 dB Typ (Up to 26.5 GHz)19 dBm (1 to 18 GHz) Typ,
17 dBm (18 to 40 GHz) Typ		23 dBm (1 to18 GHz) Typ,
20 dBm (18 to 40 GHz) Typ
PEC-60-10K40M-3R5-14-12-SFF
Active		Active0.0010.0460 dB Typ3.5 dB Typ14 dBm Min
-
PE2-45-1R018R0-4R5-22-12-SFF
Active		Active11845 dB Typ,
41 dB Min		4.5 dB Typ,
5 dB Max		20 dBm Min
-
PEC4-16-8G18G-4R7-18-15-SFF
Active		Active81813 dB Min4.7 dB Max18 dBm Typ
-
PE2-15-0R2518R0-5R0-22-12-SFF
Active		Active0.251815 dB Typ5 dB Typ20 dB Min,
22 dB Typ
-
PE2-30-0R254R0-4R5-15-12-SFF
Active		Active0.25428 dB Typ
26 dB Min		4.5 dB Max13 dBm Min
-
PE2-35-1G13G-2R5-10-12-SFF
Active		Active11335 dB Min2.5 dB Max12 dBm Min
-
PEC-12-50M40G-4R0-15-24FF
Preliminary		Preliminary0.054012 dB Typ4 dB Typ15 dBm Min
-
PEC-30-2G18G-4R5-24-12-SFF-HOIP
Active		Active21836 dB Max4.5 dB Max20 dBm Min
-
PE2-35-120-5R0-10-12-SFF
Active		Active12030 dB Min3 dB Typ,
5 dB Max		10 dBm Min
-
GMPA-8217-7
Active		Active8.517.59 dB Max-85 dBm / MHz Max22 dBm Min
-
PE2157R52015SFF Rev. D
Active		Active7.520.2514.5 to 17 dB6 dB Max18 dBm Min
-
PE2-15-8G20G-4R0-20-SFF
Active		Active82012 dB Min4 dB Typ17 dBm Min
-
PE2-26-1G8G-2R0-15-12-SFF
Active		Active1823 dB Min2 dB Max15 dBm Min
-
PE2-30-30M26R5-5R5-18-12-SFF
Active		Active0.0326.530 dB Typ5.5 dB Typ16 dBm Min
-
PE2-500M18G-5R0-21-12-SFF
Active		Active0.51824 to 29.52 dB5 dB Typ21 dB Typ,
20 dB Min
-
PEC-30-8G12G-6R0-28-15-SFF
Active		Active81230 dB Min6 dB Max23 dBm Min,
25 dBm Typ
-
PE2-26-2G18G-5-21-12-SFF-DP
Active		Active21826 dB5 dB Max21 dBm Min, 25 dBm Goal
-
PEC3-33-218-20-15-SFF-HS-E
Active		Active21833 dB Min4 dB Typ,
5 dB Max @ Band Edges		20 dBm Min
-
PEC-42-500M40G-20-12-292FF
Active		Active0.54042 dB Typ5.5 dB Typ (Up to 26.5 GHz)19 dBm (1 to 18 GHz) Typ,
17 dBm (18 to 40 GHz) Typ		23 dBm (1 to 18 GHz) Typ,
20 dBm (18 to 40 GHz) Typ
PE2-45-1R018R0-4R5-15-12-SFF
Active		Active11845 dB Typ5 dB Max15 dBm Min15 dBm Min (@ 18 GHz)
PEC-30-0R2521R0-5R0-22-12-SFF
Preliminary		Preliminary0.252126.5 dB Typ5.5 dB Max22 dBm Min,
24 dBm Typ
-
PE2-25-218-20-12-SFF
Active		Active21825 dB Min4.5 dB Typ,
5.5 dB Max		20 dBm Min
-
PEC4-16-8G18G-4R7-18-15-SFF-OPTSL
Active		Active81813 to 16 dB4.7 dB Max18 dBm Typ
-
PEC3-40-30M26R5G-6R0-12-12-SFF Rev. B
Active		Active0.0326.535 dB Min6 dB Typ,
7.5 dB Max		12 dBm Typ,
11 dBm Min
-
PE2-15-30M26R5-5R5-18-12-SFF*
Active		Active0.0326.515 dB Typ5.5 dB Typ16 dBm Min
-
PEC-25-500M40G-20-12-292FF-OPT125
Active		Active12525 dB Typ5.5 dB Typ19 dBm (1 to 18 GHz) Typ,
17 dBm (18 to 25 GHz) Typ		23 dBm (1 to 18 GHz) Typ,
20 dBm (18 to 25 GHz) Typ
PEC-30-0R5G50G-22-12-24FF
Active		Active0.55030 dB Typ9 dB Max15 dBm Min (0.5 to 40 GHz),
8 dBm Typ (40 to 50 GHz)		18 dBm Min (0.5 to 40 GHz),
12 dBm Typ (40 to 50 GHz)
PE2-16-300M20G-1R7-15-12-SFF
Active		Active0.32012.5 dB Min, 16 dB Typ (0.3 to 10 GHz),
12 dB Min, 14.5 dB Typ (10 to 16 GHz),
11.5 dB Min, 13.5 dB Typ (16 to 18 GHz),
11 dB Min, 13 dB Typ (18 to 20 GHz)		2 to 3.8 dB15 dBm Typ (0.3 to 10 GHz),
13 dBm Typ (10 to 16 GHz),
12.5 dBm Typ (16 to 18 GHz),
12 dBm Typ (18 to 20 GHz)
-
PEC-30-0R2526R0-5R0-22-12-292FF
Preliminary		Preliminary0.252626.5 dB Typ5.5 dB Max (Only valid above 1 GHz)22 dBm Min
-
PEC-30-500M40G-20-12-292FF
Active		Active0.54030 dB Typ5.5 dB Typ (Up to 26.5 GHz)19 dBm (1 to 18 GHz) Typ,
17 dBm (18 to 40 GHz) Typ		23 dBm (1 to 18 GHz) Typ,
20 dBm (18 to 40 GHz) Typ
PE2-12-30M40G-5R5-18-12-292FF
Active		Active0.034012 dB Typ, 9.5 dB Min9 dB Max (0.15 to 0.5 GHz),
7 dB Max (0.5 to 26 GHz),
11 dB Max (26 to 40 GHz)		17 dBm Typ
15.5 dBm Min
-
PE2-30-8R018R0-3R5-22-12-SFF
Active		Active81830 dB Min (Room Temp)4.5 dB Max (Room Temp)18.5 dBm Min
-
PE2-12-30M40G-5R5-7-12-292FF
Active		Active0.034012 dB Typ
9.5 dB Min		7.5 dB Max (0.03 to 10 GHz),
4.5 dB Max (10 to 20 GHz),
7.5 dB Max (20 to 40 GHz)		7 dBm Min
-
PEC-30-500M40G-20-12-292FF-OPT250M
Active		Active0.254025 dB Nom5.5 dB Typ (Up to 26.5 GHz),
7 dB Max (up to 40 GHz)		18 dBm Min (0.25 to 10 GHz),
17 dBm Min (10 to 18 GHz),
15 dBm Min (18 to 40 GHz)		25 dBm Max (0.25 to 18 GHz),
22 dBm Max (18 to 40 GHz)
PEC-42-500M40G-20-12-292FF-BG
Active		Active0.54040 dB Typ
36 dB Min		5.5 dB Typ (Up to 26.5 GHz)19 dBm (1 to 18 GHz) Typ,
17 dBm (18 to 40 GHz) Typ		23 dBm (1 to18 GHz) Typ,
20 dBm (18 to 40 GHz) Typ
PEC-30-0R2520R0-5R0-22-12-SFF *
Active		Active0.252026.5 dB5.5 dB Max22 dBm Min
-
PE2-45-2R012R0-4R0-15-12-SFF
Preliminary		Preliminary21245 dB Typ4.5 dB Typ13 dBm Min
-
categoriesbroadbandlownoiseamplifiers
