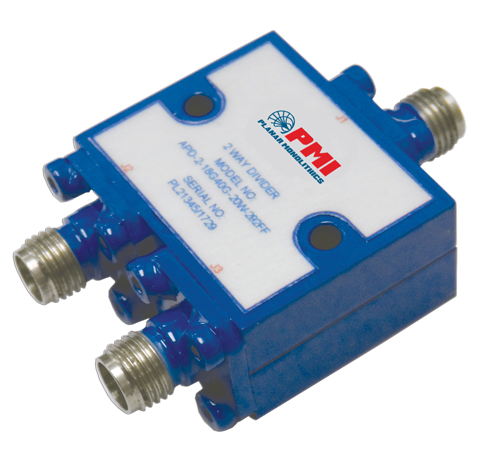

APD-2-18G40G-20W-292FF Active
2 Way Power Divider
Buy Now
Additional Documents
PMI Model APD-2-18G40G-20W-292FF is a 2 Way Power Divider operating between 18 to 40 GHz that offers low insertion loss of 1.5 dB maximum as well as having 18 dB of isolation. Housing measures 1.06" x 0.85" x 0.5" and is outfitted with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Type: | 2 Way |
| Frequency Range (GHz): | 18 to 40 |
| Frequency Min (GHz): | 18 |
| Frequency Max (GHz): | 40 |
| Isolation (dB): | 18 dB Min |
| Isolation (dB) - Measured: | 18 dB Min - Measured 21 dB |
| Insertion Loss (dB): | 1.5 dB Max |
| Insertion Loss (dB) - Measured: | 1.5 dB Max - Measured 1.14 dB |
| VSWR (In/Out): | 1.6:1 Max |
| Amplitude Balance: | ±0.3 dB Max |
| Phase Balance: | ±4° Max |
| Power Handling: | 20 W CW Max, 3 kW Peak Max |
| Impedance: | 50 O |
| Connectors: | 2.92mm Female |
| Size: | 1.06" x 0.85" x 0.50", 26.92 mm x 21.59 mm x 12.70 mm |
| Finish: | Painted Blue |
| Weight: | 1.59 oz [45 g] Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +105 ºC |
