APD-2-34 Preliminary
2 Way Power Divider

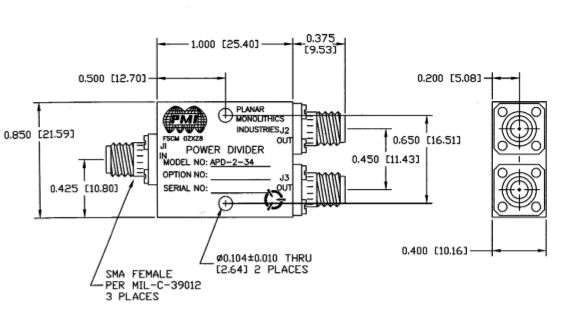

Quantic PMI Model APD-2-34 is a 2 way power divider featuring high isolation, low insertion loss and low VSWR that is designed for high reliability. Housing measures 1.0" x 0.85" x 0.4" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 3.6 to 4.2 |
| Frequency Min (GHz): | 3.6 |
| Frequency Max (GHz): | 4.2 |
| Isolation (dB): | 21 dB Min |
| Insertion Loss (dB): | 0.4 dB Max |
| VSWR (In/Out): | 1.3:1 |
| Amplitude Balance: | ±0.3 dB |
| Phase Balance: | ±3º |
| Average Power Into Load VSWR: | 25 W (1.2:1), 7.5 W (2.0:1) |
| Connectors: | SMA Female |
| Size: | 1.0" x 0.85" x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
