APD-2-50M500M-SFF Preliminary
2 Way Power Divider

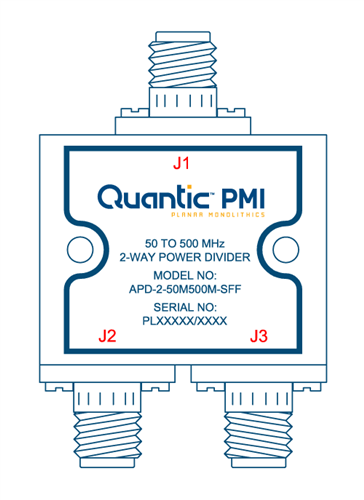

Quantic PMI Model APD-2-50M500M-SFF is a 2 Way Power Divider/Combiner operating over the 0.05 to 0.5 GHz frequency range that offers 20 dB minimum isolation while maintaining a typical insertion loss of 0.25 dB, a maximum phase balance of 2°, and a maximum amplitude balance of 0.2 dB. Housing measures 1.06" x 0.85" x 0.5" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | 2 Way |
| Frequency Range (GHz): | 0.05 to 0.5 |
| Frequency Min (GHz): | 0.05 |
| Frequency Max (GHz): | 0.5 |
| Isolation (dB): | 0.25 dB Typ |
| Amplitude Balance: | ±0.2 dB Max |
| Phase Balance: | ±2° Max |
| Connectors: | SMA Female |
| Size: | 26.92 mm x 21.59 mm x 12.70 mm, 1.06" x 0.85" x 0.50" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
