PEC-26-1G2G-3R0-25-15-SFF Active
High Linearity, Low Noise Amplifier
Buy Now

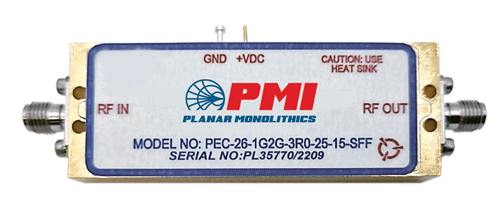

PMI Model PEC-26-1G2G-3R0-25-15-SFF is a High Linearity, Low Noise Amplifier that operates in the 1 to 2 GHz frequency range. This model offers a typical gain of 26 dB: a maximum gain flatness of ±1 dB; a maximum noise figure of 3 dB; 45 dBm output IP3 and a maximum VSWR of 2.0:1. The package size is 2.5" x 1.0" x 0.33" and has SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 2 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 2 |
| Gain (dB): | 26 dB |
| Gain Flatness (±dB): | ±1 dB |
| Noise Figure (dB): | 3 dB |
| OP1dB (dBm): | 25 dBm |
| OIP2 (dBm): | 55 dBm |
| OIP3 (dBm): | 45 dBm |
| VSWR: | 2.0:1 |
| DC Voltage Supply (VDC): | +12 to +15 VDC |
| DC Current (mA): | 400 mA |
| Connectors: | SMA Female |
| Size: | 2.5" x 1.0" x 0.33" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings:: | |
| Temperature (Operating): | -30 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 213B COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 105C COND. B |
