PEC2-2G18G-21DBM-LM-SFF

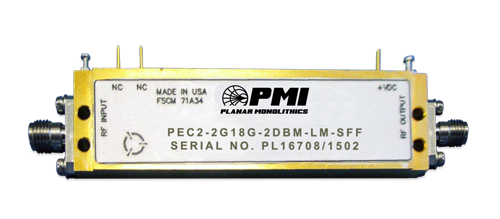

PMI Model No. PEC2-2G18G-21DBM-LM-SFF is a limiting amplifier which is designed for Military and Industrial applications where a stable, limited output level is required. This module is supplied in a SMA connectorized housing. [Other frequency ranges and limited output levels available.]

Product Specifications

General Parameters:
Status: Active
Frequency Range: 2.0 to 18.0 GHz
Frequency Min: 2 GHz
Frequency Max: 18 GHz
Input Power: -45 to +10 dBm CW
Input VSWR: 2.0:1 Max
Input VSWR (Measured): 2.0:1 Max - Measured 1.35:1
Output VSWR: 2.0:1 max - Measured 1.35:1
Noise Figure: 5 dB Max - Measured 4.26 dB
2nd Harmonic Rejection: -8 dBc @ Psat - Measured 14.27 dBc
3rd Order Intercept: 35 dBm - Design Goal,
Measured 32.9 dBm at 2 GHz,
Measured 24.44 dBm at 18 GHz
OP1dB: 4 dBm below Psat Typ,
Measured 16 dBm Typ
Maximum Input Power: 17 dBm CW
Output Power: +21.0 dBm to +25 dBm Nom - Measured -21.33 dBm Min, to 27.32 dBm Max
Output power Variation vs. Input Power: ±2.0 dB Max over operating temperature
DC Voltage Supply: 15 VDC
DC Current Draw: 700 mA Max - Measured 567 mA
Size: 2.98" x 0.78" x 0.36"
EMI/EMC: Designed to meet MIL-STD-461E
Connectors: SMA(F)
Environmental Ratings:
Temperature: -20 ºC to +70 ºC
Non-Operating: -55 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
