| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.5 to 18.0 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18.0 |
|---|
| VSWR In/Out: | 3.5:1 Max |
|---|
| Frequency Flatness (dB): | ±1.5 dB Max
±1.0 dB Typ |
|---|
| VSWR In/Out (Measured): | 3.5:1 Max (measured @ -23 dBm) |
|---|
| Voltage Sensitivity: | 700 mV/mW Typ
(Dependent on input power and frequency) |
|---|
| Tangential Sensitivity: | -50 dBm @ 2 MHz Video Bandwidth |
|---|
| Output Voltage: | Positive |
|---|
| Max Input Power: | +17 dBm |
|---|
| Speed: | 5 ns |
|---|
| Connectors In/Out: | SMA (M) Input
SMA (F) Output |
|---|

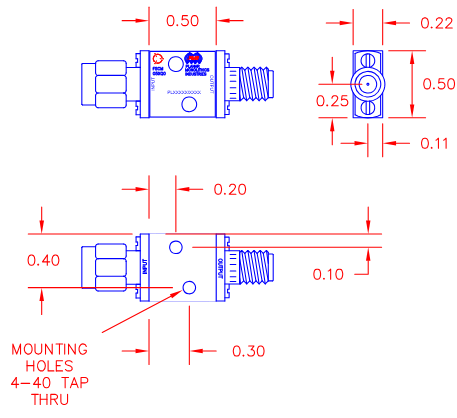

| Size: | 0.5" x 0.5" 0.22" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
