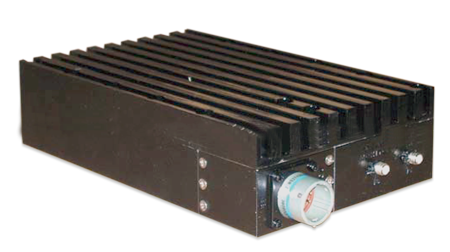

Quantic PMI Model 5829474 Rev. V is a Dual Channel Amplifier with Integrated Bi-Phase Modulators that operates from 8.9 to 9.4 GHz that provides a RF Output of 1.15 W minimum with an output power variation over frequency is <±0.5 dB and the output power variation versus temperature is <-0.038 dB / °C over the 0 to +50 °C operating temperature. This amplifier offers phase tracking from output to output of <±5° over the operating frequency at 0° phase setting and at +45 °C. This noise figure is <10 dB and second harmonic suppression is-30 dBm minimum. The amplifier is supplied in a housing measuring 9.0" x 5.0" x 3.25".
Specifications:
Frequency Range: 8.9 to 9.4 GHz
VSWR: 1.3:1 Input (J5) & Output (J1 & J3)
Operating Temperature: 0 to 50 °C
Storage Temperature: -62 to +75 °C
RF Pulses: 0.1 µs to 33.6 µs (Rep Rates up to 4K PPS)
Rise & Fall Times: 30 ns
Impedance: 50 Ohm
RF Input Power: +0.5 mW Min, +5.0 mW Max
RF Input Survival: +10 mW Max
RF Output Power: 1.15 W Min
RF Output Power Variation Over Frequency: ±0.5 dB over operating frequency
RF Output Power Variation Over Temperature: -0.038 dB / °C (Over frequency or phase)
RF Output Phase Tracking Output to Output: ±5° Max (Over frequency @ 0° Phase Setting & +45 °C)
RF Output Phase Offset Output to Output: 15° Max
Noise Figure: 10 dB Max
Discrete Spurious: -60 dBc Max (DC to 12 GHz @ RF Output Rated Power)
Total Spurious: -30 dBm Max
2nd Harmonic: 30 dBc Min
DC Supply: +15 VDC ± 2% @ 4.0 A Max and -15 VDC ± 2% @ 0.6 A Max
Size: 9.0" x 5.0" x 3.25"
Weight: 6 lbs Max
RF Connectors: SMA (F)
