Filtered Frequency Doubler, Model PFDM-3R66R65-13-7R5DC-SFF

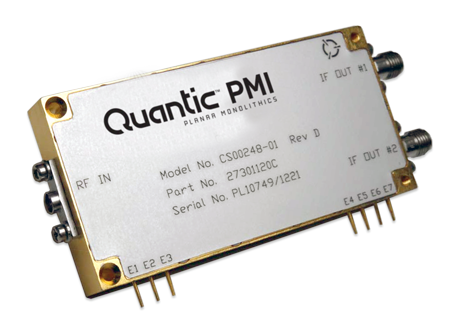

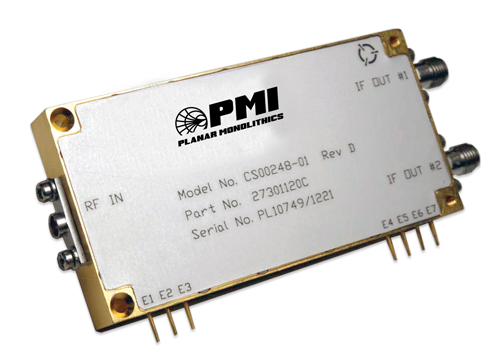

Quantic PMI Filtered Frequency Doubler, Model PFDM-3R66R65-13-7R5DC-SFF incorporates Internal band pass filtering for excellent sub-harmonic and spurious performance Integrated analog-controlled attenuator for output power control Integrated RF switches for band selection, doubler by-pass mode and selection of output port Fast switching of band selection Ultra-small size while maintaining ultra-high performance.

Model NumberRF Input Frequency Range (GHz)RF Output Frequency Range (GHz)

RF Input Power (dBm)

RF Output Power (dBm)

Attenuation Range

(dB)

Harmonic Rejection (dBc)

Sub-Harmonic
& Multiple Harmonic Rejection (dBc)

DC Current

@ +7.5 VDC

PFDM-3R66R65-13-7R5DC-SFF
3.6 - 6.653.6 - 13.30 to +4.0+10 Min.10-25-65

600 mA



Dual RF Output - TTL Switchable

Output Switching Speed: < 20 ns

VSWR In / Out: 2.0:1

RF Output #1 to RF Output #2 Isolation: >35 dB

Operating Temperature: -10 °C to +65 °C

Housing (3.0" x 1.5" x 0.375")

Other Frequency Ranges and Output Power Levels Available.
