Integrated Filter / Detector Assembly for Airborne Applications

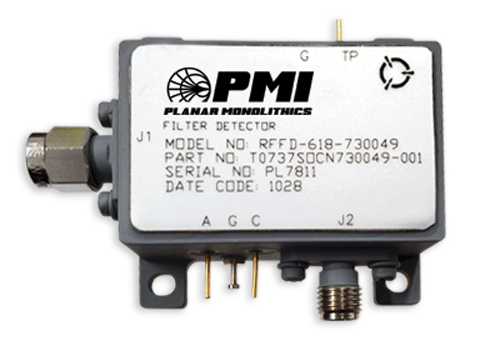

PMI Model RFFD-618-730049 is a 6 to 18 GHz low pass filter combined with a Schottky Biased Detector including a reverse voltage protection diode. A duplicate detector and protection diode is included for DC offset voltage compensation.
Quick Links: (click the links below for additional information)
Specifications: | Value: |
Frequency Range | 6 to 18 GHz |
Return Loss | -10 dB |
Maximum Input Power | 7 dBm Operational 20 dBm Survival |
Filter Rejection | 23 dB Min (20 to 26 GHz) |
Voltage Sensitivity | 80 to 140 mV |
Barrier Potential | 225 to 270 mV with 100 µA bias to +25 °C |
Operating Dynamic Range | -23 to 7 dBm |
Frequency Flatness | ±0.8 dB with 1 to 2 dB typical slope |
Diode Voltage Protection | 1 V Max at 30 mA |
Tracking Detector-Balance | ±20 mV Max over operating temperature |
Connectors: RF Input: Replaceable Video Output: Replaceable DC Connections | SMA Male SMA Female Feed-thru Solder Pins |
Size | 1.60" x 1.59" x 0.6" |
Environmental Ratings:
| Temperature: | -54 ºC to +110 ºC Operating |
| -65 ºC to +110 ºC Non-Operating | |
| Humidity: | MIL-STD-202, Method 106 |
| Shock: | MIL-STD-202, Method 213, Cond. A |
| Vibration: | MIL-STD-810C, Category B2 |
| Altitude: | MIL-STD-810C, Method 504.1 |
| THermal Shock: | MIL-STD-202, Method 170, Cond. B |
