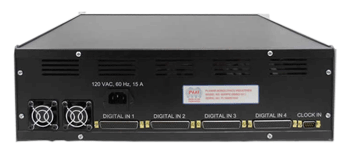

Model: MARPS-30M6G-3U-1
PMI Model No. MARPS-30M6G-3U-1 is a Multiagent Radio Frequency Path Simulator consisting of an integrated amplified attenuator assembly and an 8-Way Amplified Power Divider that operate over the 30 MHz to 6.0 GHz frequency range in order to simulate field testing in a reduced, controlled lab environment.
Quick Links: (click the links below for additional information)
Test Report on Production Unit PL19177
Specifications:
| Frequency Range | 30 MHz to 6.0 GHz |
| Gain (Inputs 1 Thru 8 to Output 1) | 4.0 dB Min, 6.1 dB Min Measured 10.0 dB Nom, 8.06 dB Min Measured 12.0 dB Max, 10.06 dB Max Measured |
| Gain (Input 9 to Output 1) | -5 dB Min, -2.6 dB Min Measured 0 dB Nom, 0.5 dB Nom Measured 5 dB Max, 3.7 dB Max Measured |
| Insertion Loss (Input 10 to Outputs 2 Thru 9) | -4.0 dB Min, -4.5 dB Min Measured -8.0 dB Max, -7.4 dB Max Measured |
| Isolation (Between Inputs 1 Thru 9) | -29.0 dB Min -36.0 dB Nom, -32.03 dB Measured |
| Isolation (Output 1 to Inputs 1 Thru 8) | -100.0 dB Min -104.0 dB Nom, -105 dB Measured |
| Isolation (Output 1 to Input 9) | -48.0 dB Typ, -72 dB Min Measured |
| Isolation (Outputs 2 Thru 9 to Input 10) | -32.0 dB Min -36.0 dB Nom, -42 dB Measured |
| Attenuation Range (Inputs 1 Thru 8 to Output 1) | 127.5 dB, 124.3 dB Measured |
| Attenuation Flatness (Inputs 1 Thru 8 to Output 1) | ±1.0 dB @ 10 dB, ±0.5 dB Measured ±1.5 dB @ 20 dB, ±0.6 dB Measured ±3.0 dB @ 40 dB, ±1.0 dB Measured ±5.0 dB @ 60 dB, ±2.3 dB Measured |
Maximum Power Rating (Inputs 1 Thru 10) | +20 dBm Max Survival* 20 dBm Measured |
| Switching Speed | 50 µs Max, 29.5 µs Measured |
| External +5 VDC Supply Via 78-Pin Connectors | +5 VDC /8A |
Environmental Ratings:
| Temperature: | 0 ºC to +75 ºC (Operating) -50 ºC to +100 ºC (Storage) |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
