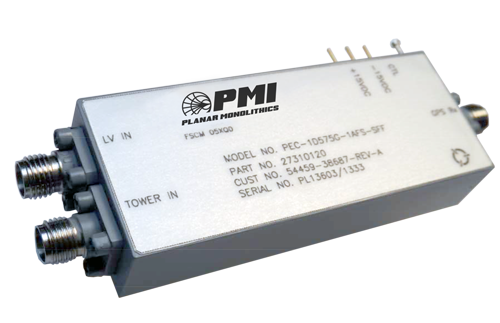

Model PEC-1D575G-1AFS-SFF, Multi-function Integrated Module
PMI Model PEC-1D575G-1AFS-SFF is a multi-function, integrated module provides amplification and filtering within the GPS L1 frequency band of 1.57542 GHz with two input channels are switchable to a common output that is designed to handle exposure to extreme environmental conditions including airborne and launch rocket environments.
| Model Number | Frequency Range (GHz) | Small Signal Gain (dB) | Noise Figure (dB) | IP1dB (dBm) | Maximum Input Power (dBm) | Filter Rejection @ 1.228 and 1.8 GHz (dBc) | Minimum Isolation Between Output ports (dB) | Operating Voltage and Current |
PEC-1D575G-1AFS-SFF | 1.57542 | 5.0 | 3.5 | -25 | 0 | -65 | 40 | 150 mA @ +15 VDC |
Dual RF Input - TTL Switchable Switching Speed: < 200 ns TTL Switch Control VSWR In / Out: 2.0:1 Operating Temperature: -55 to +85°C Housing (2.5" x 1.0" x 0.5") Hermetically Sealed Other Gain and Output Power Levels Available. |
