Model: PMOD-PWR-1030M-ATN-SFF

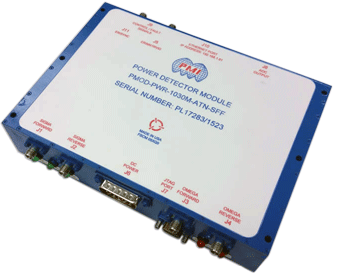

PMI Model No. PMOD-PWR-1030M-ATN-SFF is a power detector module. The operating frequency is 1030 MHz +/-0.01 MHz. Two pairs of forward and reverse signals are input allowing for a 12 bit linear digital output proportional to the input power. A GUI is provided to interface through ethernet and allow MCU programming, unit calibration and setting of the variable attenuators.
Quick Links: (click the links below for additional information)
Software and Firmware Update Instructions
Specifications:
| Sigma Input Signal | |
| Frequency | 1030 MHz ±0.0 MHz |
| Forward Input Power (J1) | +37.16 dBm ±5 dB (+50 dBm No Damage) |
| Reverse Input Power (J2) | +22.21 dBm ±1 dB (+35 dBm No Damage) |
| Omega Input Signal | |
| Frequency | 1030 MHz ±0.01 MHz |
| Forward Input Power (J3) | +40.83 dBm ±2 dB (+50 dBm No Damage) |
| Reverse Input Power (J4) | +15.42 dBm ±2.5 dB (+35 dBm No Damage) |
| Synchronize ER/Sync (J11) Specification | |
| Pulsewidth | 38 µs |
| Amplitude | 0 to 5 VDC |
| Impedance | 75 Ohms |
| GUI | - Interfaces with unit through ethernet connection - Allows calibration of power detectors - Allows programming calibration table to |
| Test Video Specification | |
| ER/MNTRVID (J5) | 0 to 5 VDC Amplitude |
| Digital Control Lines (Other than ER/Sync) | TTL Differential Pairs |
| DC Power | +5 VDC +/-5% -15 VDC +/-5% |
| Connectors | |
| J1, J2, J3, J4, J5, J11 | SMA (F) |
| J6 | 15 Pin Sub-Miniature D Male |
| J8, J9 | 37 Pin Sub-Miniature D Male |
| J7 | Molex 0878331031 or Equivalent |
| J10 | Ethernet / RJ45 |
| Finish | Painted Blue |
Environmental Ratings:
| Temperature: | -20 ºC to +55 ºC (Operating) -40 ºC to +85 ºC (Storage) |
| Humidity: | 0% to 100% Including condensation due to temperature changes |
| Altitude: | 0 to 10,000 Feet Above Sea Level |
| EMI | MIL-STD-461F CE102 |
