10C14D95G-200-CD-SFF
Preliminary
Model 10C14D95G-200-CD-SFF is a a band pass filter centered at 14950MHz. The nominal bandwidth is 200MHz.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequency: | 14950MHz |
|---|
| Insertion Loss: | 5 dB |
|---|
| Bandwidth: | 200MHz |
|---|
| Connectors In/Out: | SMA (F/F) |
|---|

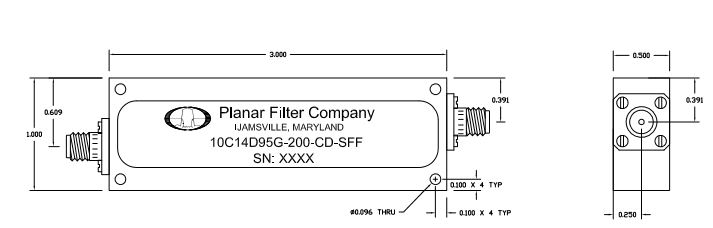

| Size: | 3.0"L x 1.0"W x 0.5"H |
|---|
| VSWR in the Pass Band: | 1.5:1 |
|---|
| Insertion Loss (Pass Band): | 5.0dB |
|---|
| Environmental Ratings: |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Temperature (Operating): | -40ºC to +85 ºC |
|---|
| Temperature (Storage): | -40ºC to +100 ºC |
|---|
