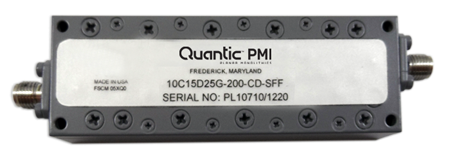

Model 10C15D25G-200-CD-SFF is a a band pass filter centered at 15250MHz. The nominal bandwidth is 200MHz.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 15250MHz
Insertion Loss: 5 dB max.
Bandwidth: 200MHz
Connectors In/Out: SMA (F/F)
Size: 3.0"L x 1.0"W x 0.5"H
VSWR in the Pass Band: 1.5:1
Insertion Loss (Pass Band): 5.0dB
Rejections: -40dBc @ 15.05 and 15.45GHz
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Temperature (Operating): -40ºC to +85 ºC
Temperature (Storage): -40ºC to +100 ºC
