10CL1380-60-CD-SFF Active
Bandpass Filter
Quantic PMI Model 10CL1380-60-CD-SFF is a bandpass filter centered at 1.38 GHz, a bandwidth of 0.6 GHz and a VSWR of 1.5:1 maximum. Package size of the filter is 3.5" x 1.2" x 0.5" with SMA (F) connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 1.38 |
| Bandwidth (GHz): | 0.06 Min |
| 3 dB Bandwidth: | 0.06 Min |
| Insertion Loss (dB): | 5 dB Max |
| Loss Ripple (Peak to Peak): | 0.5 dB Max - Measured 0.1 dB |
| Rejection: | -60 dB: DC to 1.32 GHz, -60 dB: 1.44 to 4 GHz |
| VSWR: | 1.5:1 Max - Measured 1.42:1 |
| Connectors: | SMA Female |

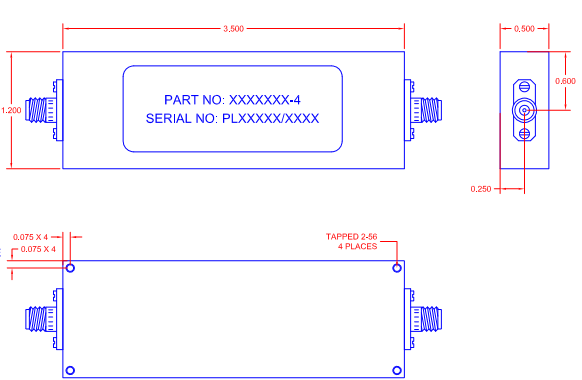

| Size: | 3.5" x 1.2" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ºC to +85 ºC Operating, -65 ºC to +125 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond A |
| Fungus: | MIL-STD-810C, Method 508.2 |
