| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency: | 16.5 GHz |
|---|
| Insertion Loss: | 1 dB |
|---|
| Bandwidth: | 3 GHz |
|---|
| VSWR: | 2.0:1 |
|---|
| Rejection: | -60 dBc @ 14 and 15 GHz,
-60 dBc @ 19 to 32 GHz |
|---|
| Connectors In/Out: | SMA (F) |
|---|

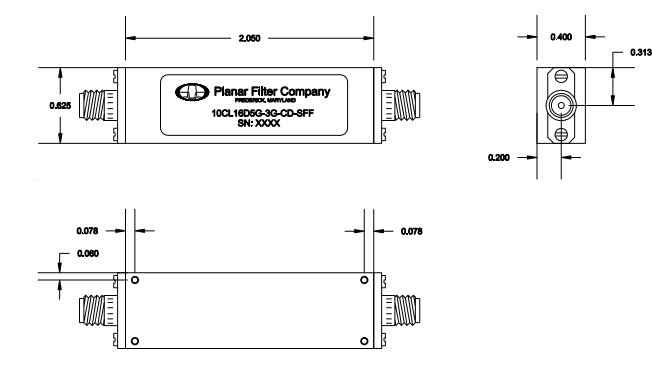

| Size: | 2.05" x 0.625" x 0.4" |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 ºC to +85 ºC Operating,
-40 ºC to +100 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
