11CL-5D5G-540-CD-SFF Active
Bandpass Filter
Additional Documents

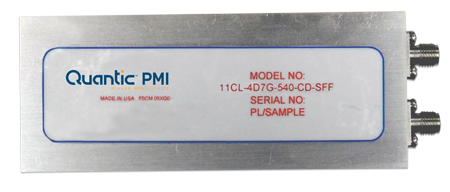

Quantic PMI Model 11CL-5D5G-540-CD-SFF is an 11 Pole Bandpass Filter centered at 5.5 GHz with a bandwidth of 0.054 GHz. Package size is 3.2" x 0.85" x 0.45" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 5.5 ± 0.027 |
| Bandwidth (GHz): | 0.054 |
| Ripple: | 0.5 dB Typ - Measured 0.05 dB PK-PK |
| VSWR: | 1.5:1 Max - Measured 1.22:1 |
| VSWR in the Pass Band: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 3.2" x 0.85" x 0.45" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ºC to +85 ºC Operating, -65 ºC to +100 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
