11CL13G-3G-CD-SFF

Model 11CL13G-3G-CD-SFF is a a band pass filter centered at 13000MHz. The nominal bandwidth is 3000MHz.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency: 13000 MHz
Insertion Loss: 1 dB
Bandwidth: 3000 MHz
VSWR: 2.0:1
Rejection: -50dBc @ 10.0 and 15.0GHz, -50dBc @ 18.5 to 29.0GHz
Connectors In/Out: SMA (F/F)

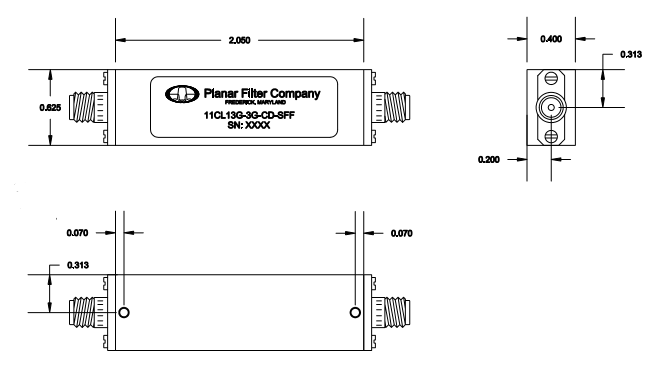

Size: 2.05"L x 0.625"W x 0.4"H
Environmental Ratings:
Temperature: -40ºC to +85 ºC Operating, -40ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
