11DP-11R5/16R5-CD-SFF

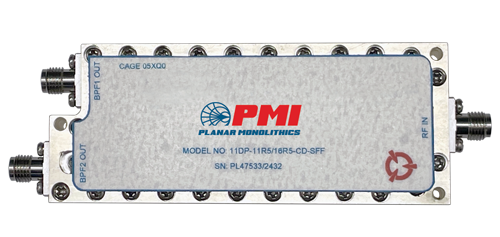

PMI Model No. 11DP-11R5/16R5-CD-SFF is a diplexer that offers passbands at 10.75 to 12.25 GHz and 15.75 to 17.25 GHz.  The passband insertion loss is less than 3 dB and the VSWR is 1.5:1 maximum.  Filter channel 1 has a passband of 10.75 to 12.25 GHz and offers -50 dBc of rejection at 10.25 GHz and -75 dBc of rejection at 13.75 GHz.  Filter channel 2 has a passband of 15.75 to 17.25 GHz and offers -50 dBc of rejection at 17.75 GHz and -75 dBc of rejection at 14.25 GHz.  The housing measures 3.5" x 1.4" x 0.5" and is offered with field removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Center Frequencies, Fo: Filter #1: 11.5 GHz, Filter #2: 16.5 GHz
Size: 3.5"L x 1.4"W x 0.5"H
Low Passband (J1 Output): Filter #1: 10.75 to 12.25 GHz, Filter #2: 15.75 to 17.25 GHz
VSWR(J1): 1.5:1 Max - Measured 1.35:1
Insertion Loss(J1): 3 dB Max - Measured 1.35 dB Max
Rejection(J1): Filter #1: -50 dBc @ 10.25 GHz & -75 dBc @ 13.75 GHz Measured -79.69 dB Min, Filter #2: -50 dBc @ 17.75 GHz & -75 dBc @ 14.25 GHz Measured -61.26 dB Max
VSWR(J2): 1.5:1 Max - Measured 1.35:1
Connectors: SMA(F) - Field Removable
Finish: No Paint - Silver Plated
Environmental Ratings:
Operating Temperature: -27ºC to +95 ºC
Non-Operating Temperature: -65ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
