11DP-11R5/16R5-CD-SFF-1 Active

Diplexer

11DP-11R5/16R5-CD-SFF-1
Product Feature

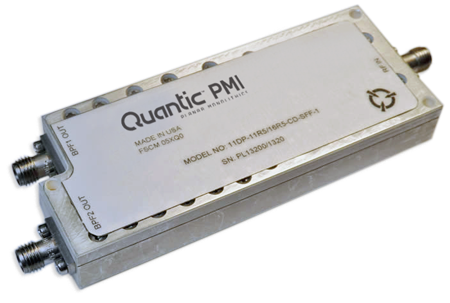

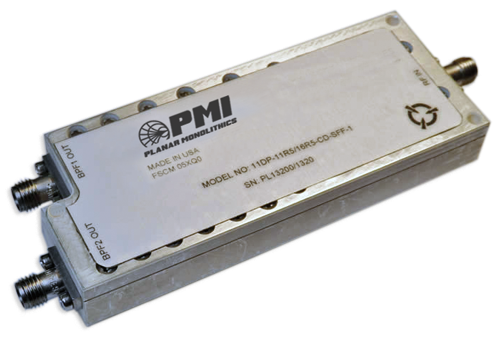

Quantic PMI Model 11DP-11R5/16R5-CD-SFF-1 is a diplexer that offers passbands at 10.75 to 12.25 GHz and 15.75 to 17.25 GHz.  The passband insertion loss is <3 dB and the VSWR is 1.5:1 Max.  Filter channel 1 has a passband of 10.75 to 12.25 GHz and offers -50 dBc of rejection at 10.25 GHz and -75 dBc of rejection at 13.75 GHz.  Filter channel 2 has a passband of 15.75 to 17.25 GHz and offers -50 dBc of rejection at 17.75 GHz and -75 dBc of rejection at 14.25 GHz. Insertion loss flatness of ±0.3 dB across the passband is achieved with fine tuning and silver-plated metal. Housing measures 3.5" x 1.4" x 0.5" and is offered with field removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
No. of Channels: 2
Center Frequencies, Fo (GHz): CH 1: 11.5 GHz
CH 2: 16.5 GHz
Bandwidth (GHz): CH 1: 10.75 to 12.25 GHz
CH 2: 15.75 to 17.25 GHz
Low Passband: 10.75 to 12.25 GHz
High Passband: 15.75 to 17.25 GHz
VSWR (J1): 1.5:1 Max
VSWR (J2): 1.5:1 Max
Insertion Loss (J1): 3 dB Max - Measured 1.67 dB
Passband Flatness: ±0.2 dB Typ, ±0.3 dB Max - Measured ±0.16 dB
Rejection (J1): BPF1: -50 dBc Min @ 10.25 GHz
-75 dBc Min @ 13.75 GHz
Rejection (J2): BPF2: -50 dBc Min @ 17.75 GHz
-75 dBc Min @ 14.25 GHz
Connectors: SMA Female - Field Removable
Size: 3.5" x 1.4" x 0.5"
Finish: No Paint - Silver Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -27 ºC to +95 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Salt Fog: MIL-STD-202F, Method 101D-EST Cond. B
Thermal Shock: MIL-STD-202F, Method 107D Cond. A
