13CL435R5-25-CD-NFF Active
Bandpass Filter
Additional Documents

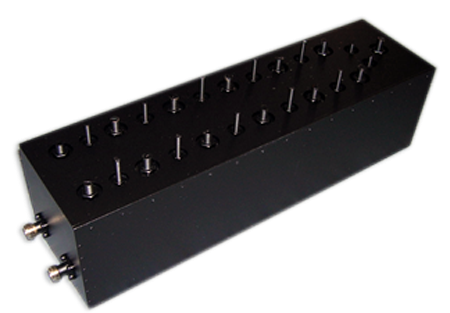

Quantic PMI Model 13CL435R5-25-CD-NFF is a bandpass filter centered at 0.4355 GHz with a nominal bandwidth of 0.025 GHz. Package size is 16.074" x 4.406" x 4.338" with Type N connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.4355 |
| Bandwidth (GHz): | 0.025 |
| Insertion Loss (dB): | 2.5 dB |
| Rejection: | -25 dBc @ 0.451 GHz, -30 dBc @ 0.420 GHz, -60 dBc @ <0.4 and >0.46 GHz, -70 dBc @ 0.411 GHz |
| VSWR: | 2.0:1 Max |
| Connectors: | Type N Female |
| Size: | 16.074" x 4.406" x 4.338" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
