15CL32G-16G-292FF Active
Bandpass Filter
Additional Documents
- Product Feature
- Test Report - 12/12/17
- PL17164 - Unit Data
- PL17165 - Unit Data
- PL17166 - Unit Data
- PL17167 - Unit Data
- PL17168 - Unit Data
- PL17169 - Unit Data
- PL17171 - Unit Data
- PL17211 - Unit Data
- PL17212 - Unit Data
- PL17213 - Unit Data
- PL17214 - Unit Data
- PL17215 - Unit Data
- PL17216 - Unit Data
- PL17217 - Unit Data
- PL17218 - Unit Data
- PL17275 - Unit Data
- PL17276 - Unit Data
- PL17277 - Unit Data
- PL17278 - Unit Data
- PL17279 - Unit Data
- PL17280 - Unit Data
- PL17281 - Unit Data
- PL17282 - Unit Data
- PL17291 - Unit Data
- PL17292 - Unit Data
- PL17293 - Unit Data
- PL17294 - Unit Data
- PL17295 - Unit Data
- PL17296 - Unit Data
- PL17297 - Unit Data
- PL17298 - Unit Data
- PL17299 - Unit Data
- PL17300 - Unit Data
- PL17301 - Unit Data
- PL21901 - Unit Data
- PL21902 - Unit Data
- PL21903 - Unit Data
- PL21904 - Unit Data
- PL21905 - Unit Data
- PL21906 - Unit Data
- PL21907 - Unit Data

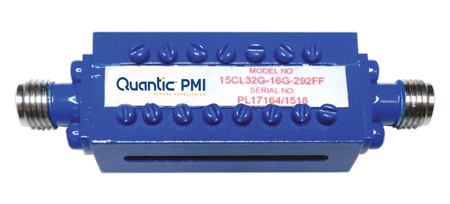

Quantic PMI Model 15CL32G-16G-292FF is a Bandpass Filter center frequency 24 to 40 GHz with a bandwidth of DC to 50 GHz. Housing is precision machined, and silver plated to provide the highest possible Q. Package size is 1.281" x 0.60" x 0.35" and 2.92mm female connectors are removable for surface mount applications.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 24 to 40 |
| Bandwidth (GHz): | DC to 50 |
| Insertion Loss (dB): | 3 dB Max |
| Ripple: | 1 dB Max - Measured <1 dB |
| Rejection: | DC to 18 GHz: 60 dB - Measured >60 dB, 42 to 50 GHz: 40 dB - Measured >40 dB |
| Connectors: | 2.92mm Female - removable |
| Size: | 1.281" x 0.60" x 0.35" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ºC to +85 ºC Operating, -65 ºC to +125 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 50832 |
