16CL-5D1G-800-CD-SFF Active
Bandpass Filter
Additional Documents

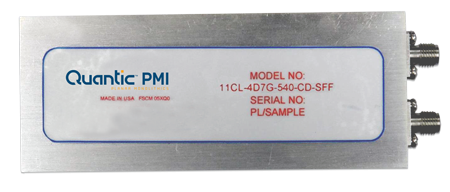

Quantic PMI Model 16CL-5D1G-800-CD-SFF is a 16 Pole Bandpass Filter centered at 5.1 GHz with a bandwidth of 0.8 GHz. Package size is 3.2" x 1.05" x 0.50" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 5.1 ± 0.4 |
| Bandwidth (GHz): | 0.8 |
| Ripple: | 0.5 dB Typ - Measured 0.05 dB PK-PK |
| VSWR: | 1.5:1 Max - Measured 1.17:1 |
| Connectors: | SMA Female |
| Size: | 3.2" x 1.05" x 0.50" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ºC to +85 ºC Operating, -65 ºC to +100 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
