2224I335 Preliminary
S-Band Isolator

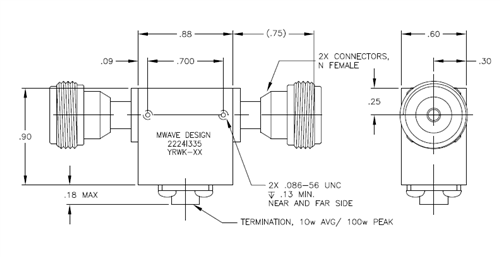

PMI Model 2224I335 is a 2.2 to 2.4 GHz isolator featuring 25 dB isolation, .2 dB insertion loss, and 1 kW peak power handling. Housing size is 0.9'x 0.88' x 0.6" with N female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 2.2 to 2.4 |
| Frequency Min (GHz): | 2.2 |
| Frequency Max (GHz): | 2.4 |
| Isolation (dB): | 25 dB Min |
| Insertion Loss (dB): | 0.2 dB Max |
| VSWR: | 1.12:1 Max |
| Forward Power: | 30 W Avg, 1 kW Peak |
| Connectors: | N Female |
| Size: | 0.9'x 0.88' x 0.6" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | 0 ˚C to +70 ˚C |
