4BP160-10-2A-PP Active
LC Bandpass Filter
Additional Documents
- Product Feature
- Test Report - 12/11/13
- PL8764-8767 - Unit Data
- PL9735-9744 - Unit Data
- PL11483-11492 - Unit Data
- PL11980-11984 - Unit Data
- PL12003-12009 - Unit Data
- PL22040 - Unit Data
- PL22041 - Unit Data
- PL22042 - Unit Data
- PL23905 - Unit Data
- PL25807 - Unit Data
- PL25808 - Unit Data
- PL25809 - Unit Data
- PL25810 - Unit Data
- PL25811 - Unit Data
- PL25812 - Unit Data
- PL25813 - Unit Data
- PL25814 - Unit Data
- PL25815 - Unit Data
- PL25816 - Unit Data
- PL26086 - Unit Data
- PL26087 - Unit Data
- PL26631 - Unit Data
- PL26632 - Unit Data
- PL27116 - Unit Data
- PL27117 - Unit Data
- PL27118 - Unit Data
- PL28720 - Unit Data
- PL28816 - Unit Data
- PL29719 - Unit Data
- PL29720 - Unit Data
- PL29721 - Unit Data
- PL29722 - Unit Data
- PL34993 - Unit Data
- PL34994 - Unit Data
- PL34995 - Unit Data

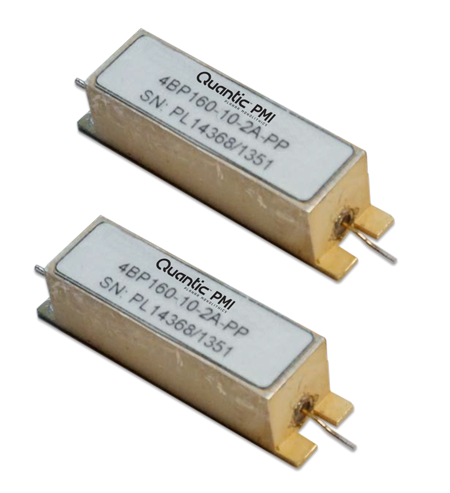

Quantic PMI Model 4BP160-10-2A-PP is an LC bandpass filter centered at 0.16 GHz with a nominal bandwidth of 0.01 GHz. Package size is 1.00" x 0.31" x 0.31" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.16 |
| Bandwidth (GHz): | 0.01 ± 5% |
| Insertion Loss (dB): | 5 dB |
| Insertion Loss (Pass Band): | 5 dB |
| Rejection: | 4 Section Response |
| VSWR in the Pass Band: | 1.5:1 Max |
| Connectors: | PC Pins |
| Size: | 1.00" x 0.31" x 0.31" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
