4BP160-5-2A-PP Active
LC Bandpass Filter
Additional Documents
- Product Feature
- Test Report - 12/11/13
- PL22037 - Unit Data
- PL22038 - Unit Data
- PL22039 - Unit Data
- PL23904 - Unit Data
- PL25643 - Unit Data
- PL25644 - Unit Data
- PL25645 - Unit Data
- PL25646 - Unit Data
- PL25647 - Unit Data
- PL25648 - Unit Data
- PL25649 - Unit Data
- PL25650 - Unit Data
- PL25651 - Unit Data
- PL25652 - Unit Data
- PL25653 - Unit Data
- PL25654 - Unit Data
- PL25655 - Unit Data
- PL25656 - Unit Data
- PL25657 - Unit Data
- PL25658 - Unit Data
- PL25659 - Unit Data
- PL25660 - Unit Data
- PL25661 - Unit Data
- PL25662 - Unit Data
- PL26049 - Unit Data
- PL26050 - Unit Data
- PL26051 - Unit Data
- PL26053 - Unit Data
- PL26054 - Unit Data
- PL26055 - Unit Data
- PL26084 - Unit Data
- PL26085 - Unit Data
- PL26629 - Unit Data
- PL26630 - Unit Data
- PL27112 - Unit Data
- PL27113 - Unit Data
- PL27114 - Unit Data
- PL27115 - Unit Data
- PL28721 - Unit Data
- PL30102 - Unit Data
- PL30103 - Unit Data
- PL30104 - Unit Data
- PL30105 - Unit Data
- PL33662 - Unit Data
- PL33663 - Unit Data
- PL33664 - Unit Data
- PL33665 - Unit Data
- PL33666 - Unit Data
- PL33667 - Unit Data
- PL34241 - Unit Data
- PL34242 - Unit Data
- PL34243 - Unit Data

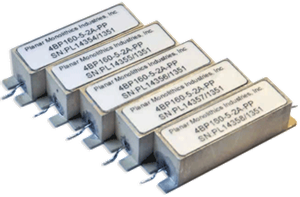

Quantic PMI Model 4BP160-5-2A-PP is an LC Bandpass filter centered at 0.16 GHz with a nominal bandwidth of 0.05 GHz. This unit has a maximum insertion loss of 10 dB inside the small 1.20" x 0.31" x 0.31" package outfitted with PC pins.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.16 |
| Bandwidth (GHz): | 0.05 ± 5% |
| Insertion Loss (dB): | 10 dB |
| Insertion Loss (Pass Band): | 10 dB |
| Rejection: | 4 Section Response |
| VSWR in the Pass Band: | 1.5:1 max. |
| Connectors: | PC Pins |
| Size: | 1.20" x 0.31" x 0.31" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
