4BP160-50-2A-PP Active
Bandpass Filter
Additional Documents
- Product Feature
- Test Report
- PL5848-5857 - Unit Data
- PL9847-9856 - Unit Data
- PL11460-11466 - Unit Data
- PL12077-12086 - Unit Data
- PL23906 - Unit Data
- PL28718 - Unit Data
- PL29604 - Unit Data
- PL29605 - Unit Data
- PL29606 - Unit Data
- PL29607 - Unit Data
- PL34674 - Unit Data
- PL34675 - Unit Data
- PL34676 - Unit Data

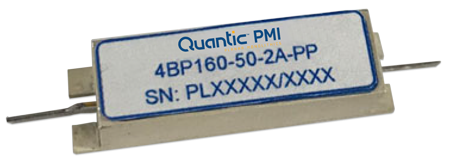

Quantic PMI Model 4BP160-50-2A-PP is a bandpass filter centered at 0.16 GHz with a nominal bandwidth of 0.05 GHz. This unit has a maximum insertion loss of 4 dB inside the small 1.20" x 0.31" x 0.31" package outfitted with PC pins.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.16 |
| Bandwidth (GHz): | 0.05 ±5% |
| Insertion Loss (dB): | 3 dB |
| Insertion Loss (Pass Band): | 3 dB Typ |
| Rejection: | 4 Section Response |
| VSWR in the Pass Band: | 1.5:1 Max |
| Connectors: | PC Pins |
| Size: | 1.20" x 0.31" x 0.31" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +120 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
