4BP425-50-2B-PP Preliminary
Bandpass Filter

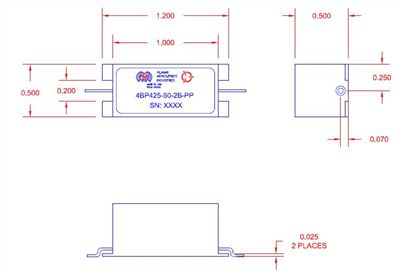

Quantic PMI Model 4BP425-50-2B-PP is a bandpass filter centered at 0.425 GHz with a nominal bandwidth of 0.05 GHz. Package size is 1.2" x 0.5" x 0.5" with PC pins connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 0.425 |
| Bandwidth (GHz): | 0.05 |
| Insertion Loss (dB): | 1.1 dB Max |
| Insertion Loss (Pass Band): | 1.1 dB Max |
| Rejection: | -60 dBc @ DC to 0.22 GHz -60 dBc @ 0.68 to 3 GHz |
| VSWR in the Pass Band: | 1.5:1 Max |
| Connectors: | PC Pins |
| Size: | 1.2" x 0.5" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to +85°C |
| Non-Operating Temperature: | -40 °C to +100°C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
