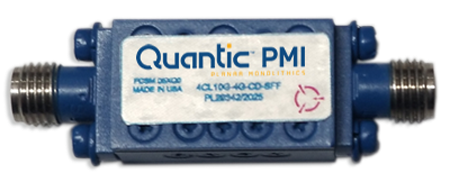

4CL10G-4G-CD-SFF Active
Bandpass Filter
Quantic PMI Model 4CL10G-4G-CD-SFF is a bandpass filter centered at 10 GHz with a nominal bandwidth of 4 GHz. Package size is 0.805" x 0.478" x 0.413" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 10 |
| Bandwidth (GHz): | 4 |
| Insertion Loss (dB): | 1 dB |
| Rejection: | 4 Pole Response |
| VSWR: | 1.5:1 - Measured 1.377:1 |
| Connectors: | SMA Female / Female |
| Size: | 0.805" x 0.478" x 0.413" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
