4CL3G-2G-CD-SFF Active
Combline Bandpass Filter
Quantic PMI Model 4CL3G-2G-CD-SFF is a Combline Bandpass Filter that has a center frequency of 3 GHz and a Passband of 2 GHz. The passband insertion loss is 1 dB with 4 Pole Response rejection. The filter measures 1.5" x 0.7" x 0.85" and is supplied with SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 3 |
| Bandwidth (GHz): | 2 |
| Insertion Loss (dB): | 1 dB |
| Rejection: | 4 Pole Response |
| VSWR: | 1.5:1 Max |
| Connectors: | SMA Female / Female |

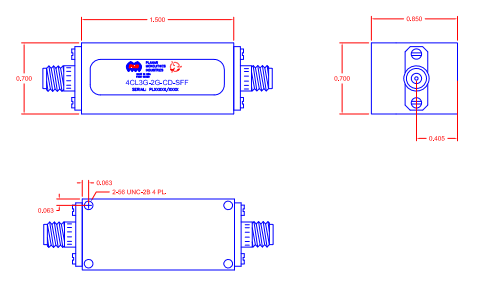

| Size: | 1.5" x 0.7" x 0.85" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
