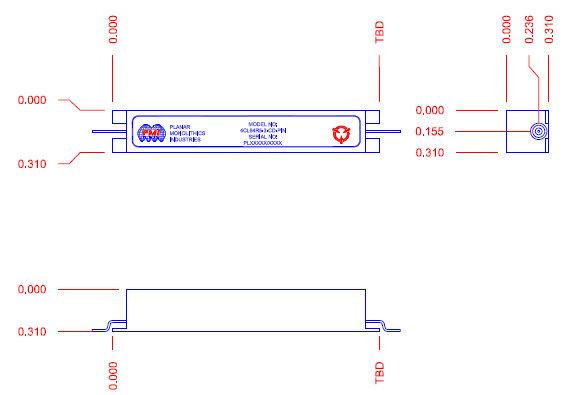

PMI Model No. 4CL64R5-3-CD-PIN is a combline bandpass filter centered at 64.512 MHz with a 3 MHz bandwidth. This filter features high out of band rejection and low passband insertion loss.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency: 64.512 MHz
Insertion Loss: 2.5 dB max.
Bandwidth: 5% min.
3 dB Bandwidth: 5% min.
VSWR: 1.35:1 max.
Passband Ripple: 1.0 dB max.
Rejection: -62 dB max. above 129 MHz, -60 dB max. @ 129 MHz, -75 dB max. @ 32.5 MHz
Impedance: 50 OHMS (Input/Output)
Connectors: PIN
Connectors In/Out: SMA (F)
Size: 0.310 x 0.310 x TBD
Finish: Gold Plated
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: X,Y,Z Axes, 6 Grms, 10 Min.
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
