4CL6G-4G-CD-SFF

Model 4CL6G-4G-CD-SFF is a a band pass filter centered at 6000MHz. The nominal bandwidth is 4000MHz.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency: 6000 MHz
Insertion Loss: 1 dB
Bandwidth: 4000 MHz
VSWR: 1.5:1 max.
Rejection: 4 Pole Response
Connectors In/Out: SMA (F/F)

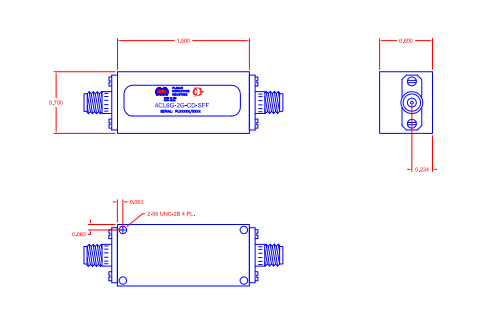

Size: 1.5"L x 0.7"W x 0.6"H
Environmental Ratings:
Temperature: -40ºC to +85 ºC Operating, -40ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
