5BP60-2-3B-SFF Active
Bandpass Filter

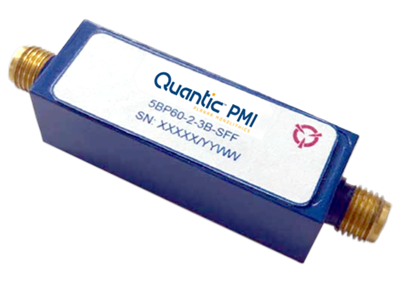

Quantic PMI Model 5BP60-2-3B-SFF is a bandpass filter centered at 0.06 GHz with a nominal bandwidth is 0.0036 GHz. This unit has a maximum insertion loss of 4 dB inside the small 1.50" x 0.50" x 0.50" package outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 0.06 |
| Bandwidth (GHz): | 0.0036 |
| Insertion Loss (dB): | 4 dB |
| Insertion Loss (Pass Band): | 4 dB |
| VSWR in the Pass Band: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 1.5" x 0.5" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -40 °C to +100 °C |
| Humidity: | MIL-STD-202F. Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
