5CL10D98G-180-CD-SFF

Model 5CL10D98G-180-CD-SFF is a a band pass filter centered at 10980MHz. The nominal bandwidth is 180MHz.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 10980 MHz Nominal - Measured 10991 MHz
Insertion Loss: 4.0 dB max - Measured 2.0 dB
3 dB Bandwidth: 180 MHz min - Measured 271.2 MHz
VSWR: 1.5:1 max - Measured 1.4:1
Loss Ripple (Peak to Peak): 0.5 dB max - Measured 0.48 dB
Rejection: -55 dBc @ 12400 - 15000 MHz - Measured 79 dB, -65 dBc @ DC - 8000 MHz - Measured 82 dB, -75 dBc @ 8220 - 9600 MHz - Measured 83 dB
Connectors In/Out: SMA(F)

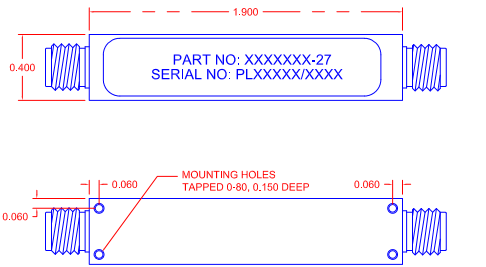

Size: 1.9" x 0.4" x 0.4"
Environmental Ratings:
Temperature: -55ºC to +85 ºC Operating, -65ºC to +125 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Salt Fog: MIL-STD-202F, Method 107D Cond A
Fungus: MIL-STD-810C, Method 508.2
