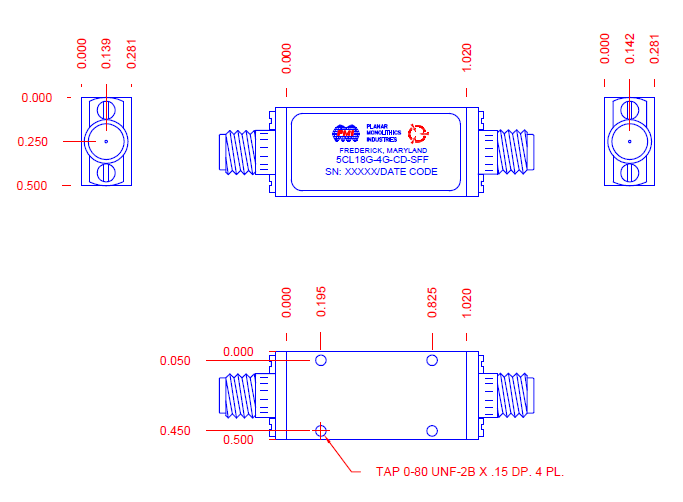

5CL18G-4G-CD-SFF

Model 5CL18G-4G-CD-SFF is a a band pass filter centered at 18000MHz. The nominal bandwidth is 4000MHz.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency: 18000 Mhz
Insertion Loss: 0.75 dB
Bandwidth: 4000 MHz
VSWR: 1.8:1
Rejection: -70dBc @ 5.0GHz, -70dBc @ 32.0 to 40.0GHz
Connectors In/Out: SMA (F/F)
Size: 1.02"L x 0.5"W x 0.4"H
Environmental Ratings:
Temperature: -40ºC to +85 ºC Operating, -40ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
