5CL5086-100-CD-SS-EX

PMI Model No. 5CL5086-100-CD-SS-EX is a combline filter.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 5086 MHz
Insertion Loss: 4 dB max.
Bandwidth: 100 MHz
VSWR: 1.5:1 max.
Connectors In/Out: SMA (F)

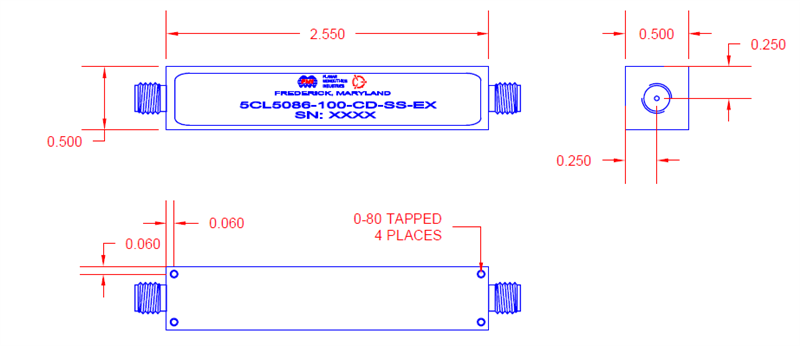

Size: 2.55" x 0.50" x 0.50"
Rejection from DC to 10.5 GHz: -40 dB
Rejection from 11.1 to 32.4 GHz: -40 dB
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
Salt Fog: MIL-STD-202F, Method 107D Cond. A
Fungus: MIL-STD-810C, Method 508.2
Temperature (Operating): -55°C to +85°C
Temperature (Storage): -65°C to +125°C
