5CL5G-100-CD-SFF Preliminary
Bandpass Filter

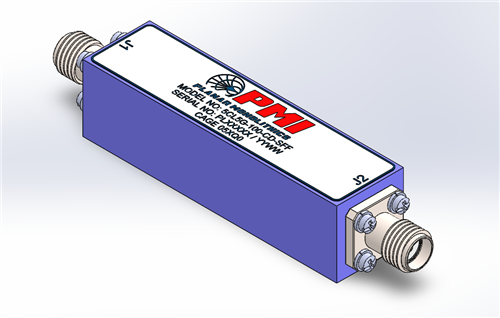

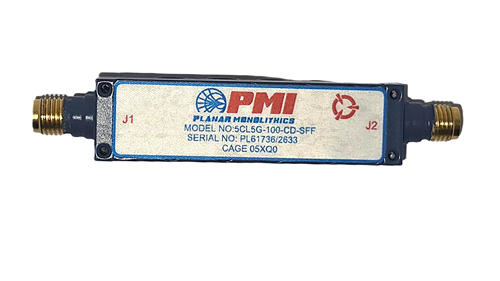

Quantic PMI Model 5CL5G-100-CD-SFF is a bandpass filter centered at 5 GHz with a nominal bandwidth of 0.1 GHz. Package size is 1.9" x 0.5" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 5 |
| Bandwidth (GHz): | 4.95 to 5.05 |
| Insertion Loss (dB): | 4.2 Max |
| Rejection: | 5 Pole Response |
| VSWR: | 1.5:1 Max |
| Connectors: | SMA Female |
| Size: | 1.9" x 0.5" x 0.5" |
| Weight: | 1 oz. Typ |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ºC to +85 ºC Operating, -65 ºC to +125 ºC Non-Operating |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
| Fungus: | MIL-STD-810, Method 508.2 |
