5CL5G-2G-CD-SFF Active
Bandpass Filter
Additional Documents

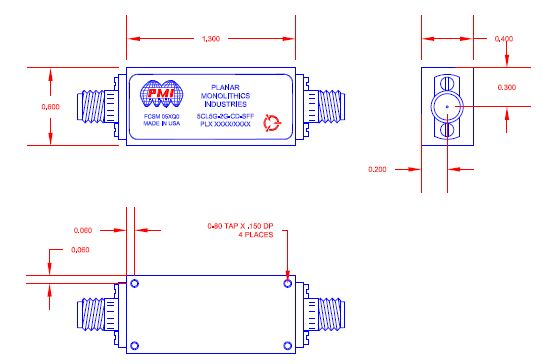

Quantic PMI Model 5CL5G-2G-CD-SFF is a bandpass filter centered at 5 GHz with a 3 dB bandwidth @ 2 GHz. Package size is 1.3" x 0.6" x 0.4" with SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 5 |
| Bandwidth (GHz): | 2 |
| Insertion Loss (dB): | <1 dB Max |
| Rejection: | 5 Pole Response |
| VSWR: | 1.5:1 - Measured 1.433:1 |
| Connectors: | SMA Female |
| Size: | 1.3" x 0.6" x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 ºC to +85 ºC Operating, -65 ºC to +125 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. B |
| Fungus: | MIL-STD-202F, Method 508.2 |
