| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequency: | 5000 MHz |
|---|
| Insertion Loss: | 4.2 dB |
|---|
| Bandwidth: | 75 MHz |
|---|
| VSWR: | 1.5:1 max. |
|---|
| Rejection: | 5 Pole Response |
|---|
| Connectors In/Out: | SMA (F/F) |
|---|

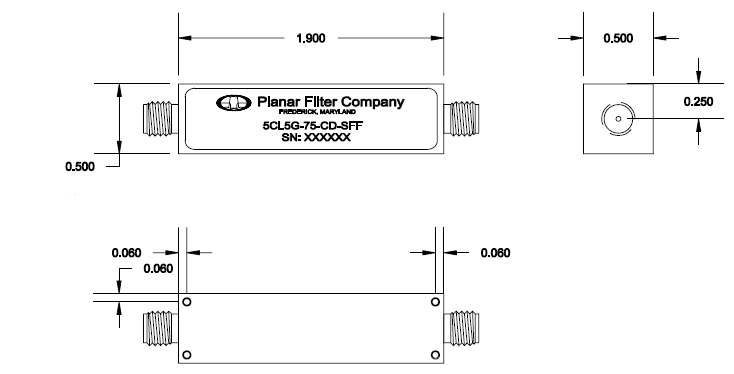

| Size: | 1.9"L x 0.5"W x 0.5"H |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40ºC to +85 ºC Operating, -40ºC to +100 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
