5CL6D8-100-CD-SMM Active

Narrow Bandwidth Cavity Filter

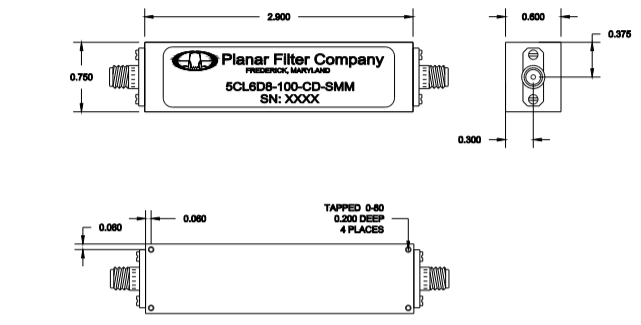

Quantic PMI Model 5CL6D8-100-CD-SMM is A Narrow Bandwidth Cavity Filter with a center frequency of 6.8 GHz and a bandwidth of 0.1 GHz @ 3 dB.  Precision machined housing and silver plated to provide the highest possible Q.  Package size is 2.90" x 0.60" x 0.75" with SMA female connectors in and out.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 6.8 GHz
Insertion Loss: 4 dB Max
Bandwidth: 0.1 GHz @ 3 dB
Connectors: SMA (F)
Size: 2.90" x 0.60" x 0.75"
VSWR in the Pass Band: 1.5:1 Max
Environmental Ratings:
Humidity: MIL-STD-202F, METHOD 103B COND. B
Shock: MIL-STD-202F, METHOD 213B COND. B
Vibration: MIL-STD-202F, METHOD 204D COND. B
Altitude: MIL-STD-202F, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202F, METHOD 107
Salt Fog: MIL-STD-202F, METHOD 107D COND. A
Fungus: MIL-STD-810C, METHOD 508.2
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
