5CL7G-42-CD-SFF

Model 5CL7G-42-CD-SFF is a a band pass filter centered at 7000MHz. The nominal bandwidth is 42MHz.

Product Specifications

General Parameters:
Status: Active
Center Frequency: 7000 MHz
Insertion Loss: 3 dB
Bandwidth: 42 MHz
3 dB Bandwidth: 42 MHz
Connectors In/Out: SMA (F/F)

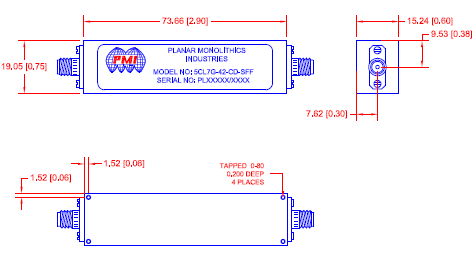

Size: 2.9"L x 0.6"W x 0.75"H
VSWR in the Pass Band: 1.5:1
Rejections: -40 dBc @ 7100 MHz, -60 dBc @ 7200 to 16000 MHz
Environmental Ratings:
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Temperature (Operating): -40 ºC to +85 ºC
Temperature (Storage): -40 ºC to +100 ºC
