| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency: | 7 GHz |
|---|
| Insertion Loss: | 1.5 dB |
|---|
| Bandwidth: | 0.7 GHz |
|---|
| VSWR: | 1.5:1 |
|---|
| Rejection: | 8 Pole Response |
|---|
| Connectors In/Out: | SMA (F/M) |
|---|

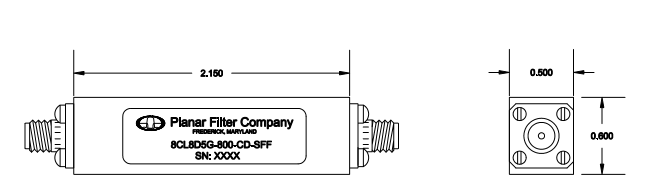

| Size: | 2.15"L x 0.6"W x 0.5"H |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 ºC to +85 ºC Operating,
-40 ºC to +100 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
